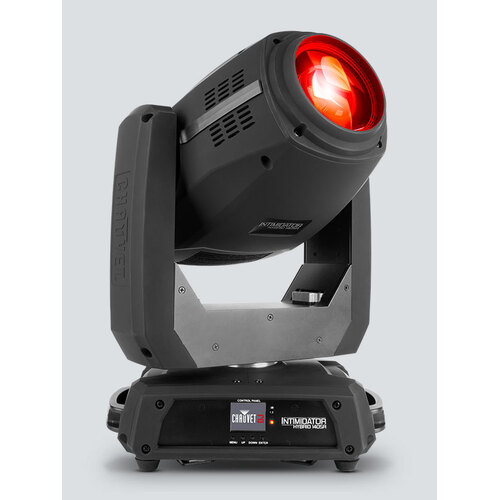

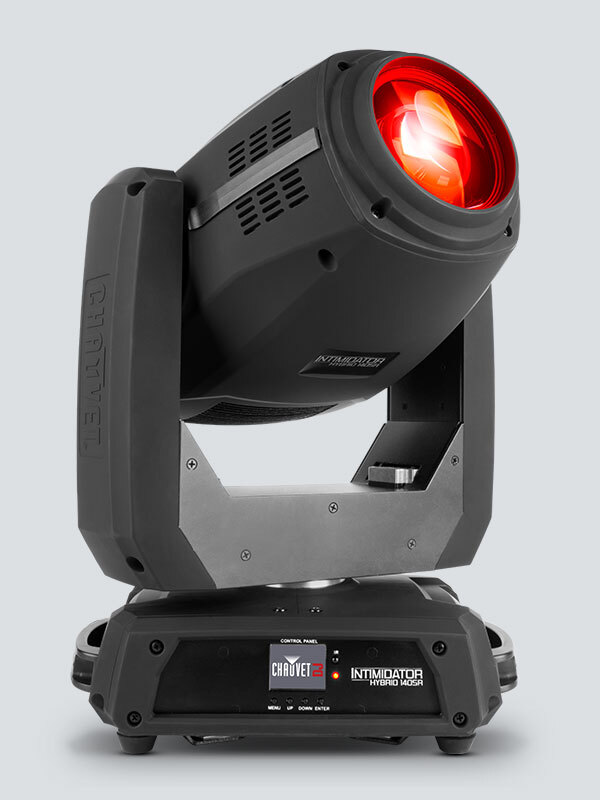

CHAUVET DJ Intimidator Hybrid 140SR Moving head

Calculate Shipping

PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

True hybrid moving head fitted with an intense 140 W discharge light engine
All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
Dual, overlapping prisms with independent control multiply the beam dynamics
Dual gobo wheels allow for gobo morphing and amazing mid-air projections
Motorized zoom works in beam, spot and wash modes for ultimate light control
Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
Emit crisp projections at almost any distance using the motorized focus
Glass optics ensure crisp beams and gobos at all times
Flexible menu option accepts Osram 132 W lamps if needed
Full-color display with IRC-6 compatibility, totem mode and onboard memory for storing a scene

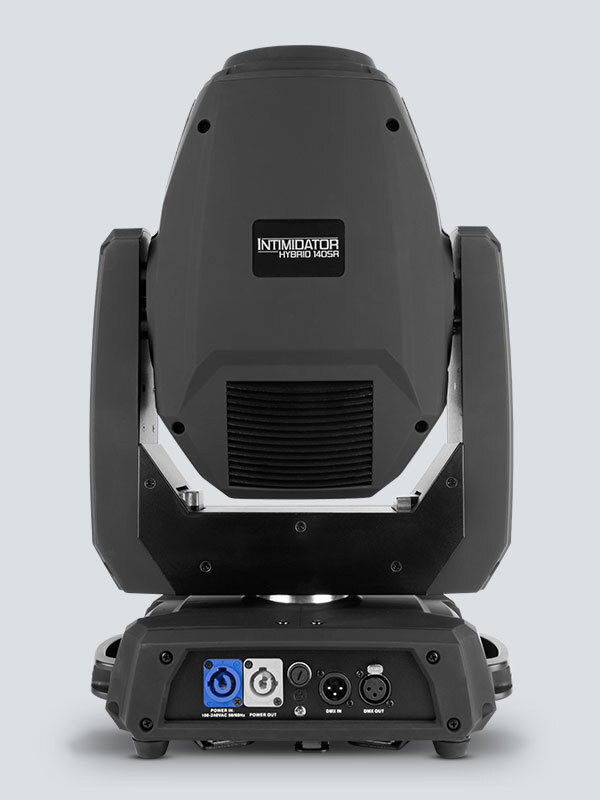

powerCON®-compatible power input/output connections for power linking
Fits best in the Intimidator Road Case S35X
- True hybrid moving head fitted with an intense 140 W discharge light engine
- All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
- Dual, overlapping prisms with independent control multiply the beam dynamics
- Dual gobo wheels allow for gobo morphing and amazing mid-air projections
- Motorized zoom works in beam, spot and wash modes for ultimate light control
- Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
- Emit crisp projections at almost any distance using the motorized focus
- Glass optics ensure crisp beams and gobos at all times
- Flexible menu option accepts Osram 132 W lamps if needed
- Full-color display with IRC-6 compatibility, totem mode and onboard memory for storing a scene
- powerCON®-compatible power input/output connections for power linking
- Fits best in the Intimidator Road Case S35X
Specifications
- DMX Channels: 13 or 19
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors: 12 + white, split colors, continuous scroll at variable speeds
- Gobos: wheel (1): 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
  wheel (2): 17 + open, aluminum, continuous scroll at variable speeds
- Light Source: (included): Osram Sirius HRI 140 W discharge lamp (6,000 hrs)
  (optional): Osram Sirius HRI 132 W discharge lamp (6,000 hrs)
- Strobe Rate: 0 to 20 Hz
- Zoom Angle: (beam): 3° to 11°
  (spot): 7° to 21°
  (wash): 14° to 28°
- Illuminance: (3° beam): 382,000 lux @ 5 m
  (7° spot): 104,700 lux @ 5 m
  (14° wash): 4,680 lux @ 5 m
- Power Linking: 3 units @ 120 V; 6 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 260 W, 2.5 A @ 120 V, 60 Hz
  254 W, 1.3 A @ 230 V, 50 Hz
- Gobo Size: (rotating): 13.7 mm outside, 11 mm image, 1 mm max thickness
- Weight: 33.4 lb (15.2 kg)
- Size: 12.6 x 8.6 x 20.2 in (322 x 220 x 513 mm)
- Approvals: CE, MET
- Gobo wheel: (1): 9 + open, rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
  (2): 17 + open, metal, continuous scroll at variable speeds
- Optional Controllers: IRC - 6
- Prism: (1): 8-facet round, bidirectional rotation at variable speeds
- Prism: (2): 6-facet linear, bidirectional rotation at variable speeds

(CHAHYBRID140SR)

SKU	CHAHYBRID140SR
Brand	CHAUVET
Shipping Weight	16.2000kg
Shipping Width	0.360m
Shipping Height	0.560m
Shipping Length	0.260m
Shipping Cubic	0.052416000m3
