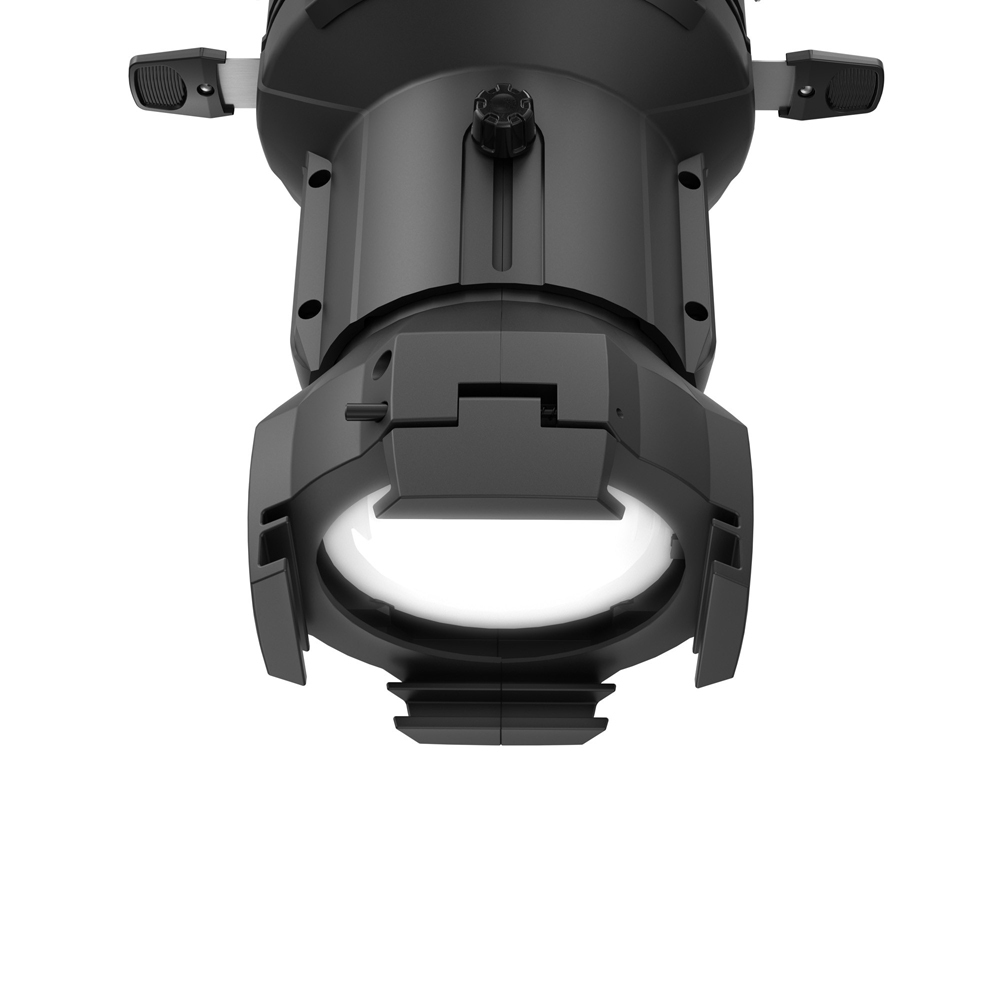

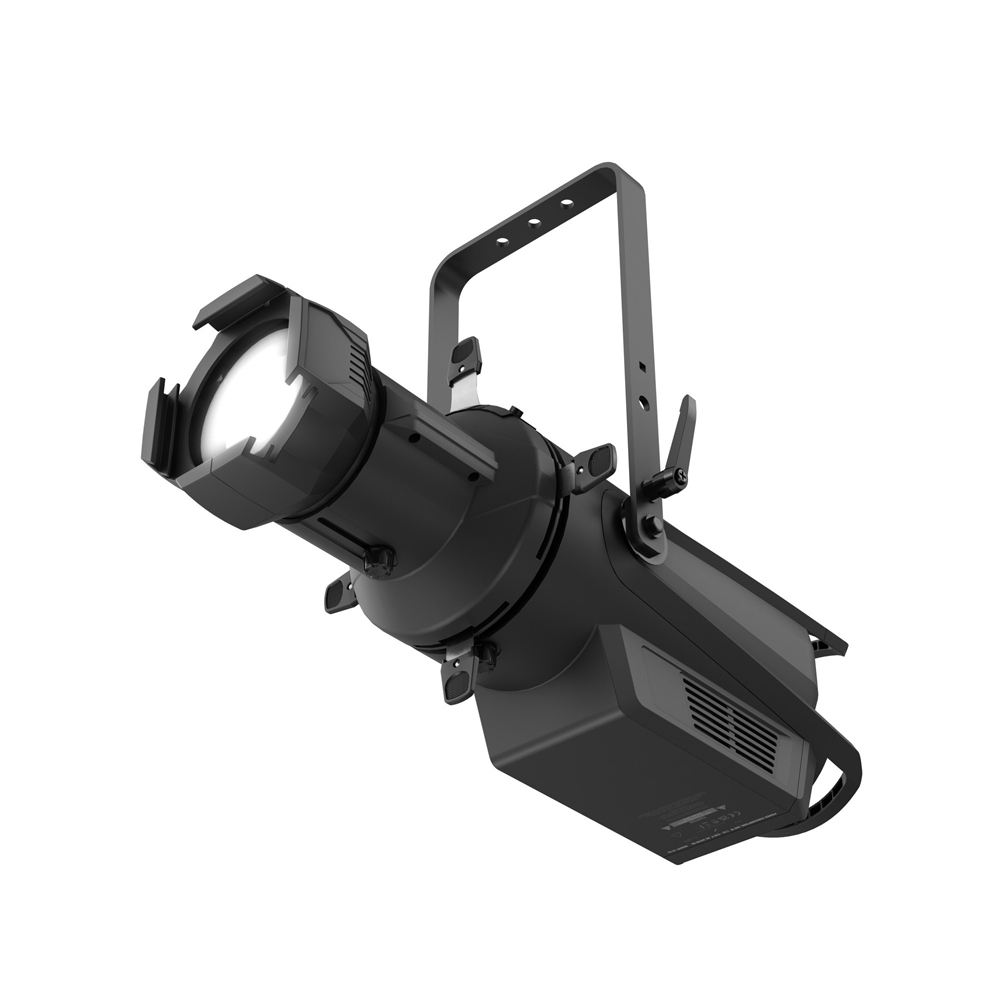

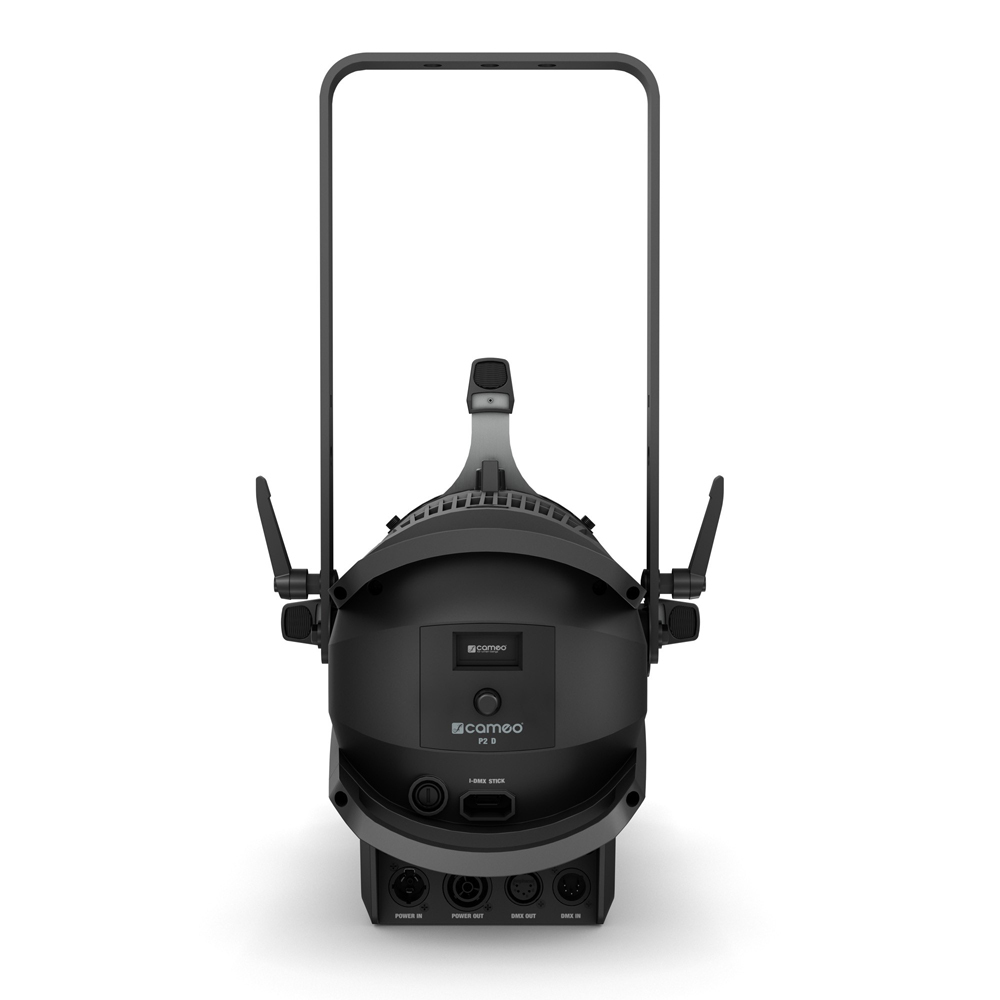

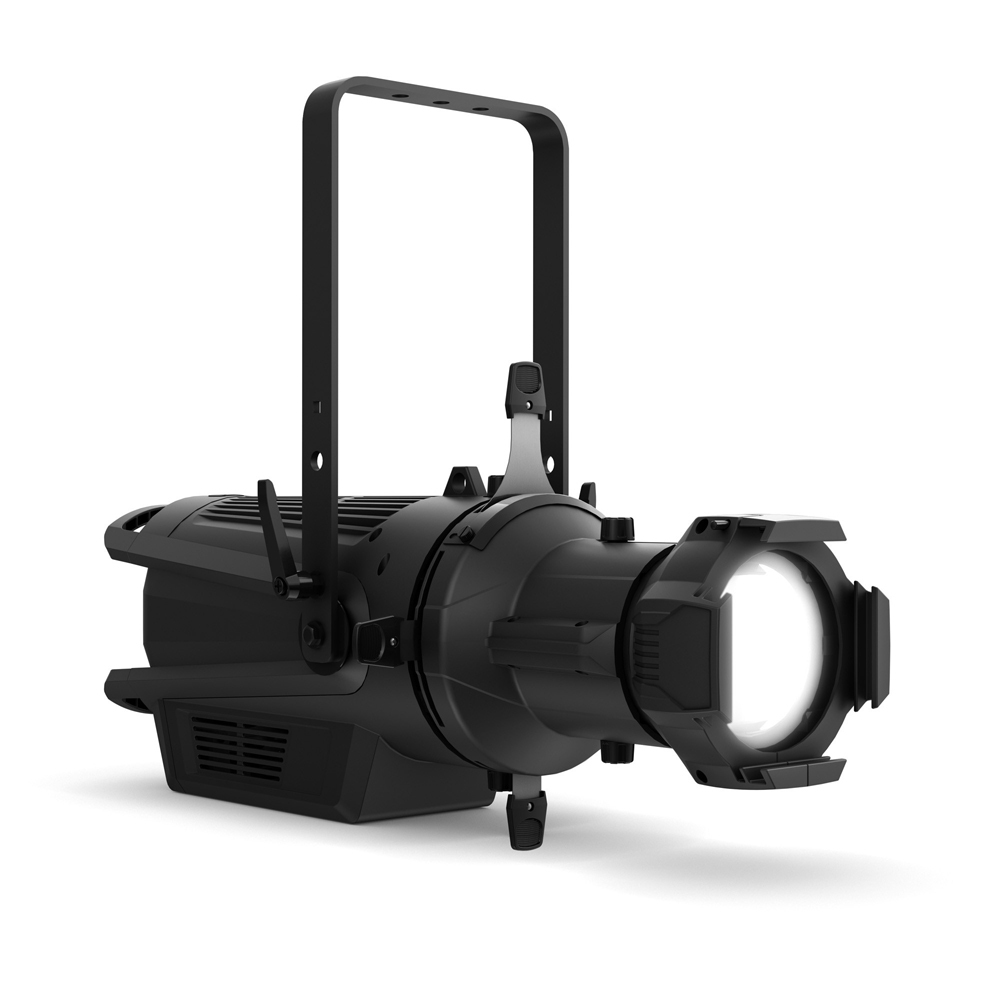

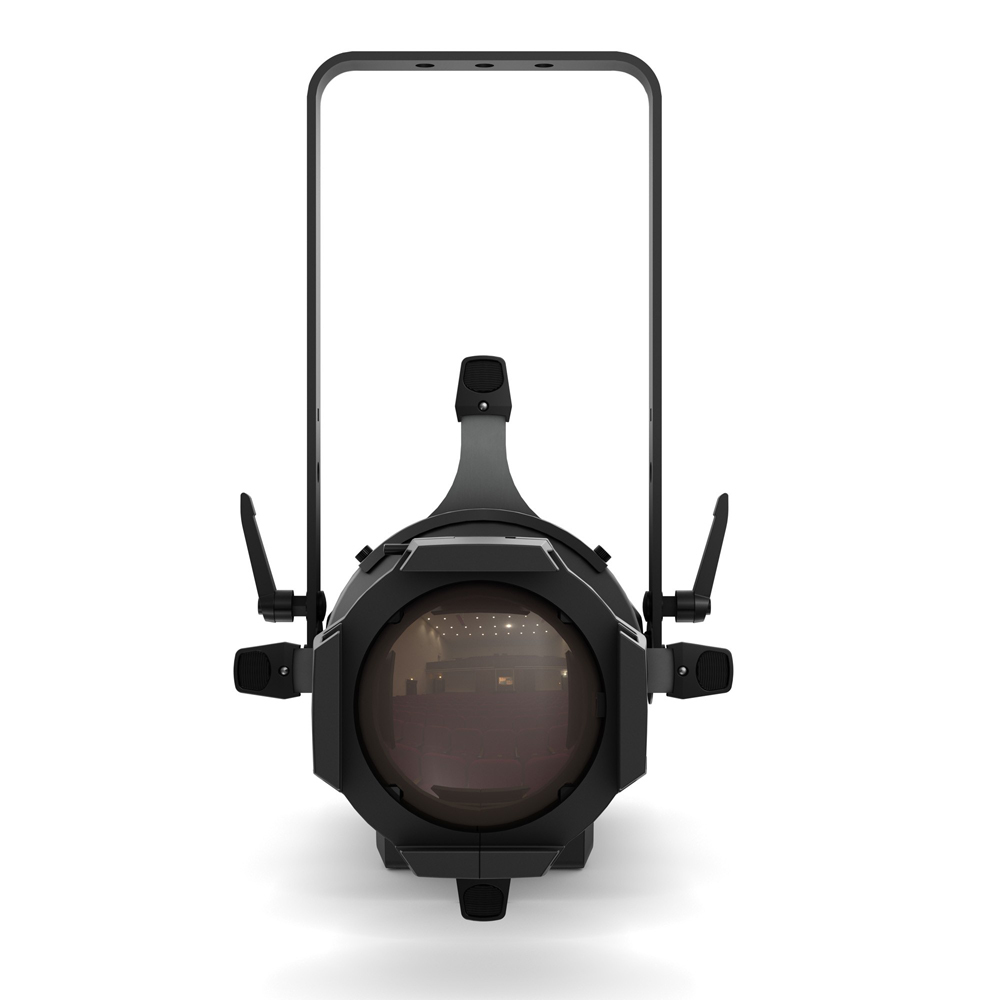

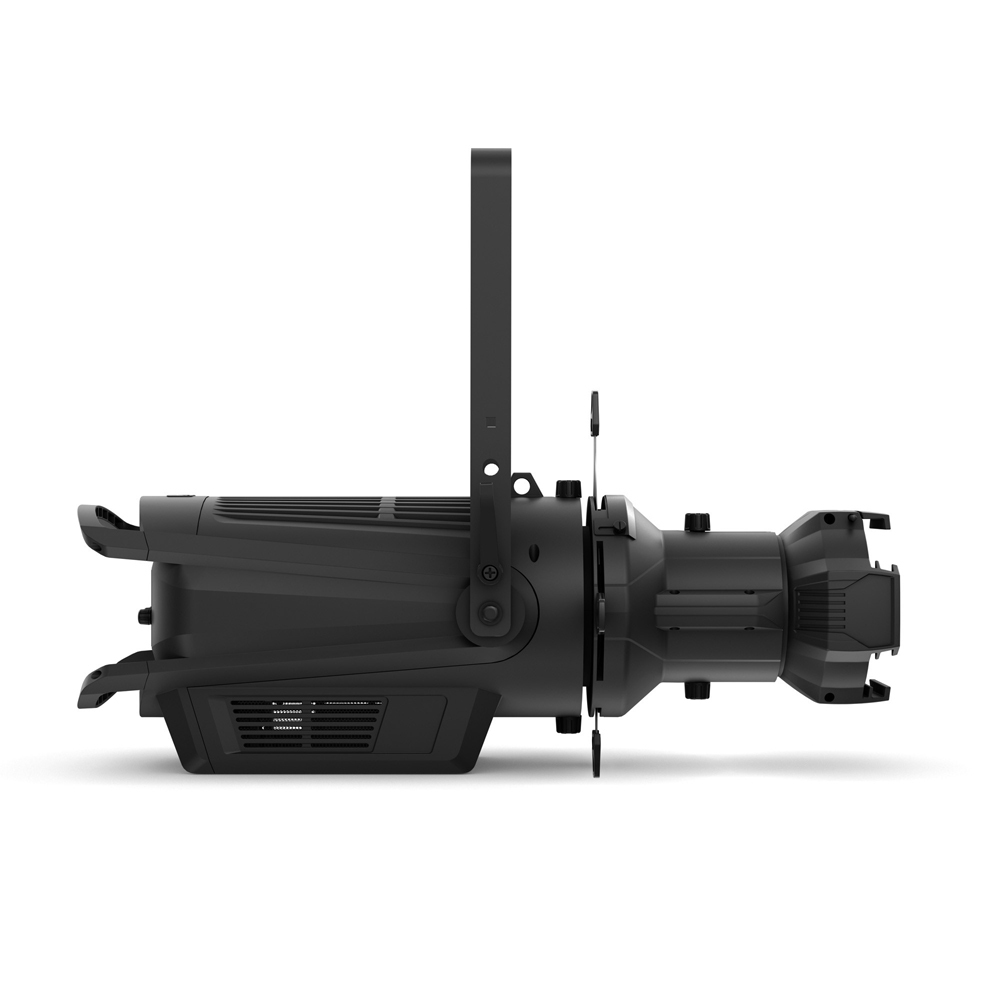

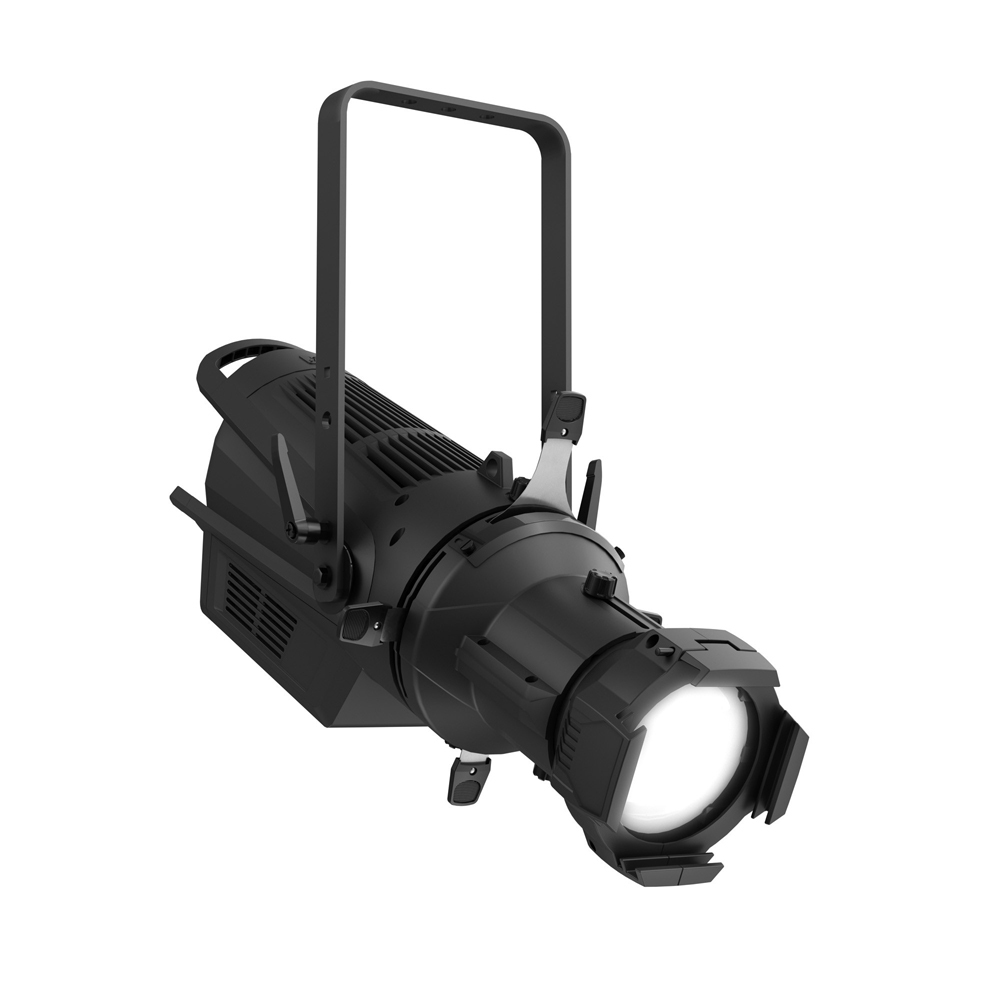

Cameo P2 Daylight LED Profile Spot 230W

$2,599.00
In Stock


Calculate Shipping



PICK UP FROM STORE - $0.00
FREE PICK UP BETWEEN 10AM - 4.30PM WEEKDAYS FROM THE PRODUCTION SHOP

  • LED profiler with 230 W daylight COB LED
  • High CRI (>97Ra) and TLCI (>93) for natural colour rendering
  • 15,000 lm luminous flux replaces conventional profile spotlight with 750W HPL bulb
  • Colour temperature: 5,900 K (daylight white)
  • Interchangeable fixed optics (19°, 26°, 36°, 50°) and zoom optics (15°-30°, 25°-50°)
  • Time-saving Quicklight function with push encoder operation
  • Selectable pulse width modulation (up to 25 kHz) for flicker-free operation
  • Control via DMX, RDM or W-DMX (via optional Cameo iDMX Stick)
  • Silent fan with different fan modes for every application area.

Technical Data



Product type LED profile spotlight
Colour spectrum Daylight
Color temperature 5900 K
Luminous flux 15,000 lm
Refresh rate 800 – 25000 Hz
Lenses (optional) Interchangeable Lens-Tubes
Dispersion 15 – 30 °, 19 °, 25 – 50 °, 26 °, 36 °, 50 °
Inputs iDMX slot, XLR (5-pin)
Outputs XLR (5-pin)
Dimmer curves Exponetial, Linear, Logarithmic, Square
Dimmer resolution 16 bit
Strobe 0 – 20 Hz
CRI >97 Ra
TLCI >93
Control DMX, Master / Slave mode, RDM, Standalone, W-DMX via iDMX stick
DMX Functions Device Settings, Dimmer, Dimmer Curve, strobe
System settings Default settings, Dimmer, Dimmer Response, Display, Fan mode, LED PWM Frequency, Signal Fail, Wireless
Controls Push & turn encoder
Indicators OLED Display
Protection class IP IP20
Ambient temperature (operating) -10 – 40 °C
Relative Humidity < 80 %, not condensing
Cooling Convection, low-noise fan
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power connector TRUE1 Compatible Power I/O Socket
Housing material Die-cast aluminium, Magnesium
Cabinet colour Black
In the box 1 x CLP2 daylight profile spotlight (without lens tube)
1 x soft edge filter
1x power cable
User manual
Dimensions 245 x 202 x 462 mm
Weight 10.5 kg

(CAMEO-P2D)

SKU CAMEO-P2D
Brand CAMEO
