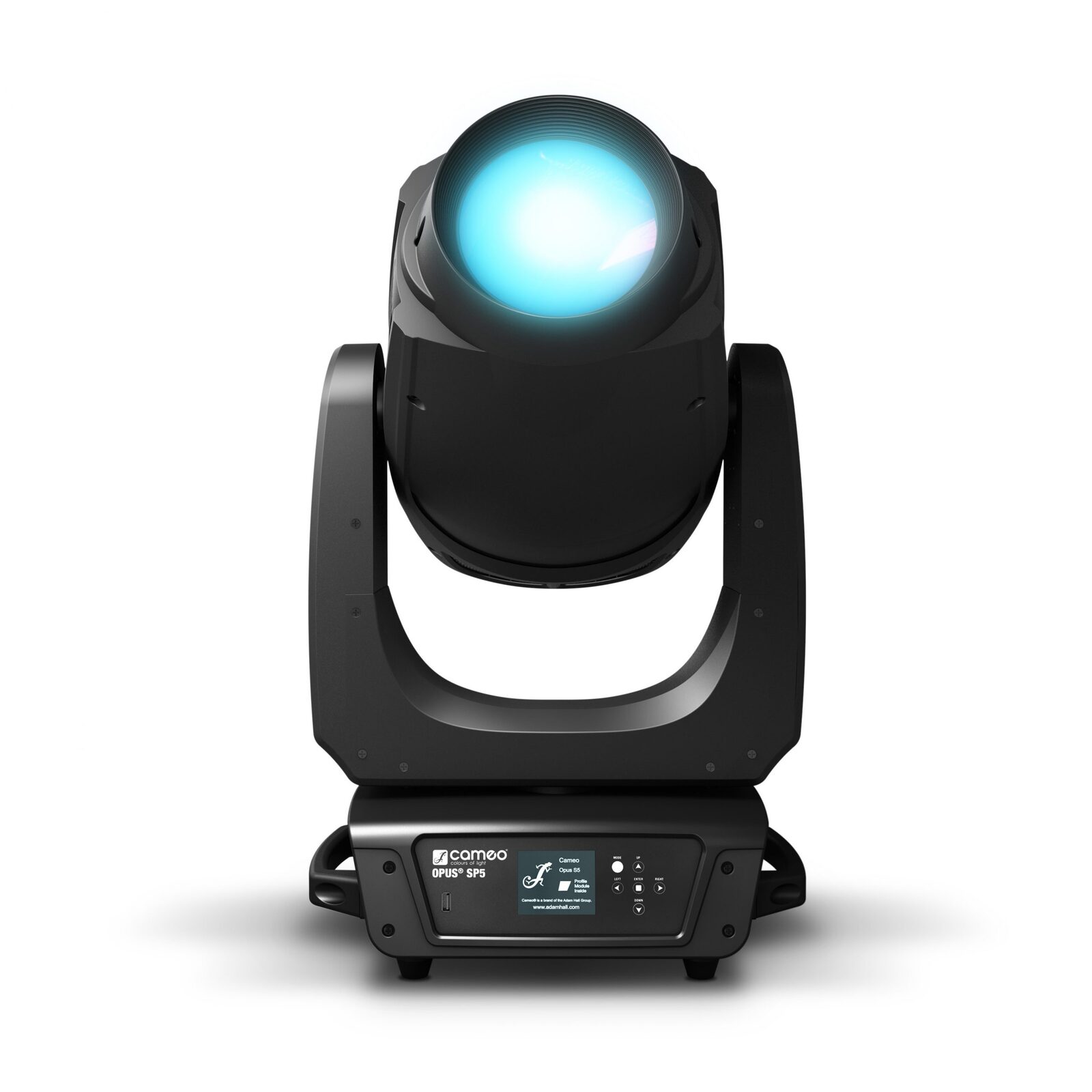

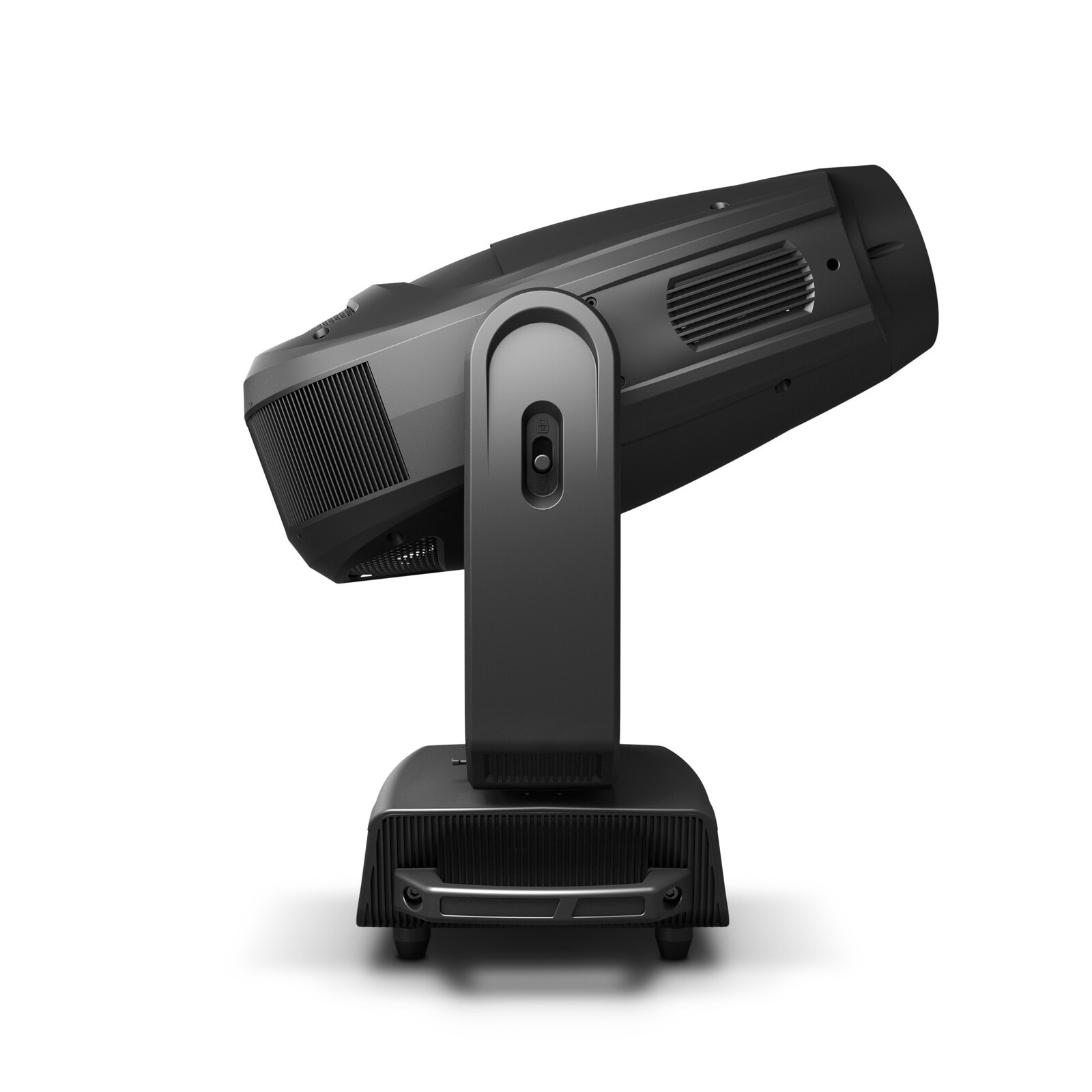

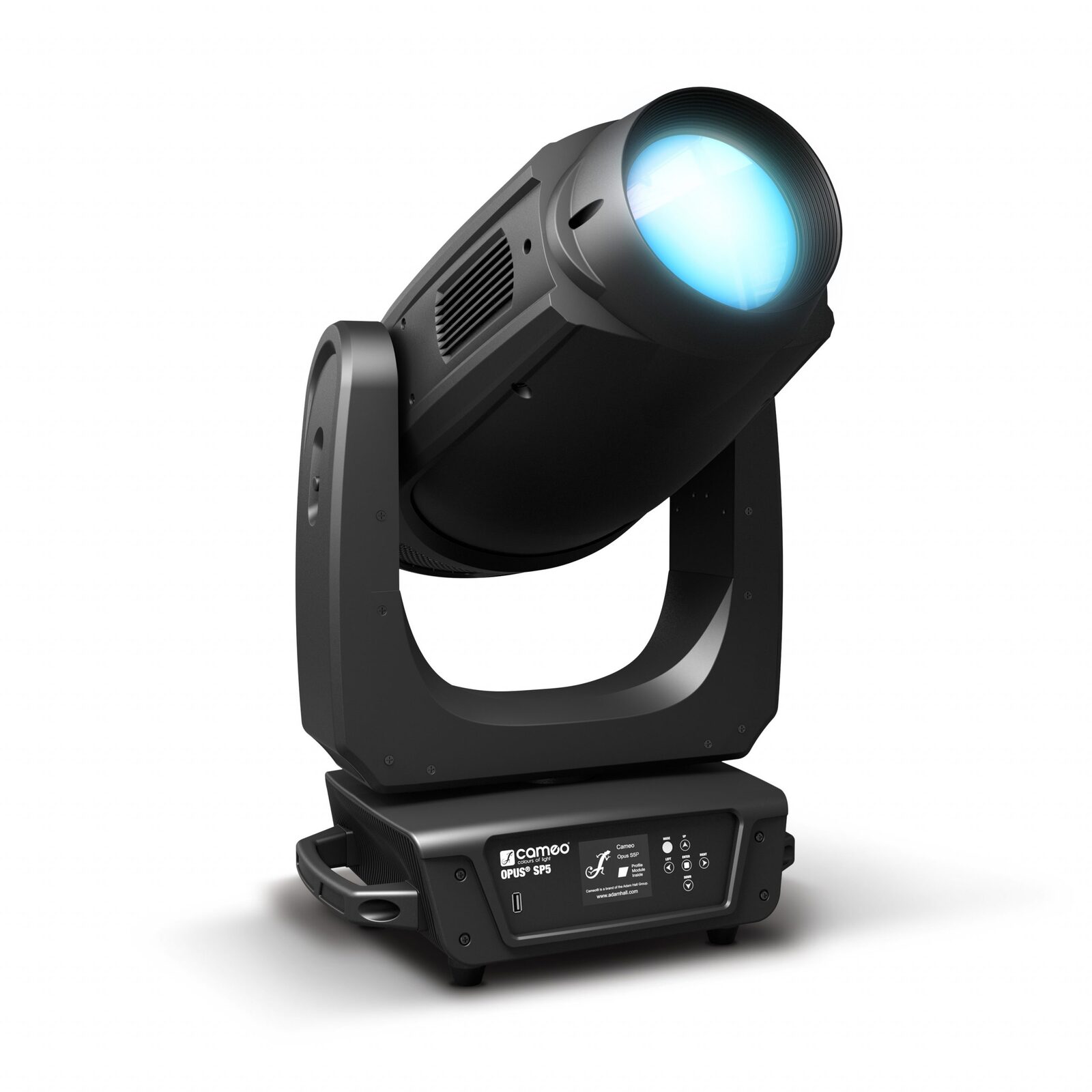

Cameo OPUS SP5 FC Profile Spot Moving Head

In Stock

Calculate Shipping


  • Profile Spot Moving Head with 300 W Full Colour RGBAL-LED
  • Display the complete colour spectrum with CRI >90 and TLCI 93
  • High-quality optic with especially long zoom range of 6° to 44°
  • Even projection without colour shadows
  • Fourfold diaphragm slider system with +/- 45° rotation
  • Angle and position of each diaphragm slider adjustable up to complete closure
  • Rotatable animation wheel
  • Rotating gobo wheel with 6 indexable and rotatable replaceable glass gobos plus open
  • Static gobo wheel with 7 replaceable glass gobos plus open
  • Rotatable and indexable circular threefold prism and linear sixfold prism
  • Variable frost filter for washlight effects and continuously variable iris diaphragm
  • Smooth dimming with 16-bit resolution and 4 selectable curves
  • Flicker-free thanks to selectable PWM frequencies up to 25 kHz

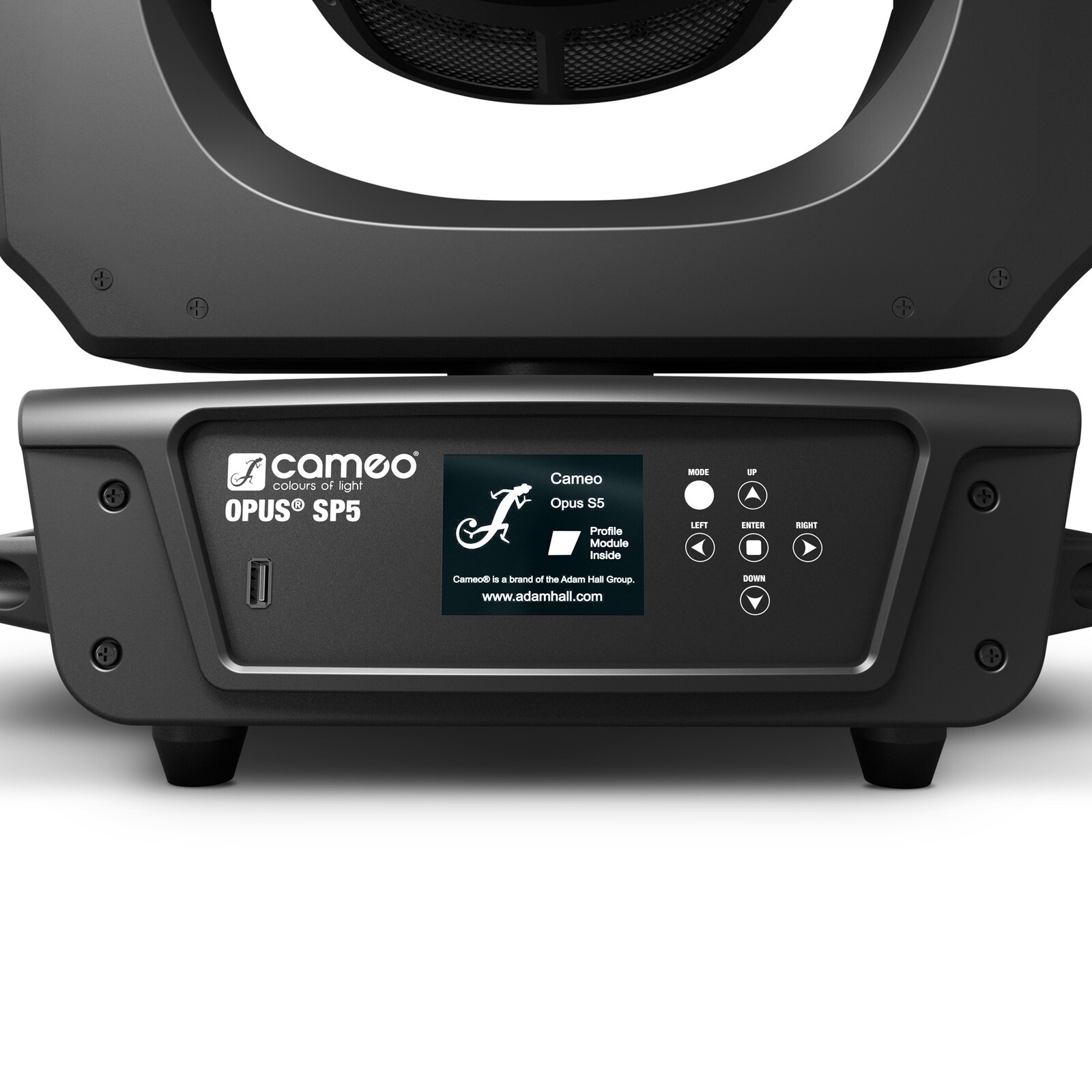

  • Battery-powered touchscreen display with 6 touch keys for mains-free configuration
  • Flexible control options via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
  • 50 colour presets matched for use with LEE filters.

Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.

The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

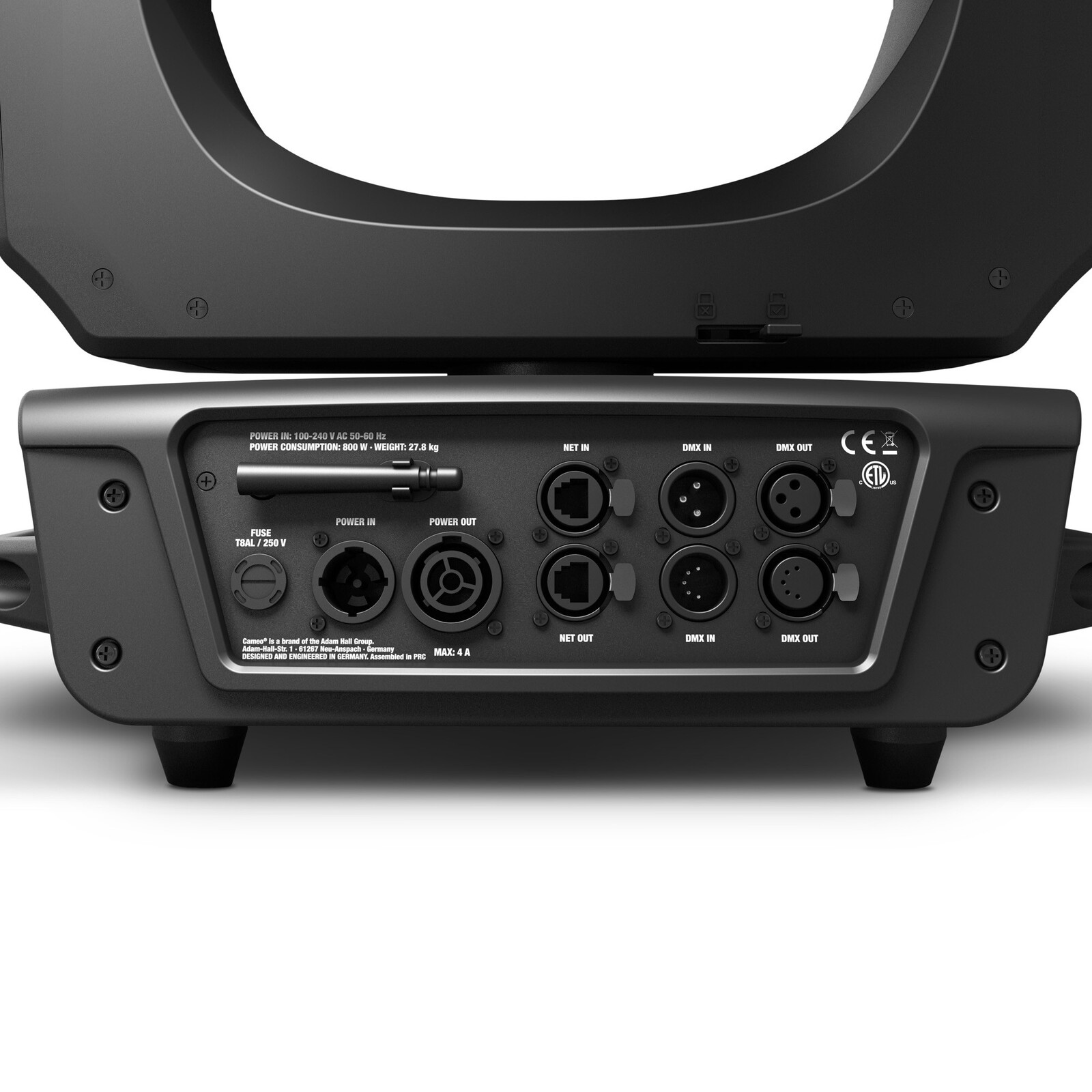

The OPUS® SP5 FC offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. Its robust ABS and metal housing is equipped with Neutrik® DMX and powerCON TRUE1 power sockets, while highly efficient heat pipe cooling and temperature-controlled fans ensure optimal operation. A battery-powered touchscreen display and 6 additional touch buttons facilitate convenient, mains-free configuration and two methods for navigation. The spotlight is supplied with two Omega brackets and power cable.

Technical Data


Product type LED Moving Lights
Type Moving Head
Colour spectrum RGBAL
Number of LEDs 1
LED type 300 W
Refresh rate Adjustable to 25000 Hz
Dispersion 6 – 44 °
DMX input XLR 3-pin male, XLR 5-pin male
DMX output XLR 3-pin female, XLR 5-pin female
DMX mode 33-channel
DMX Functions Animation Wheel, Auto Movement, Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Focus Fine, Framing Blade Rotation, Framing Blades, Frost, Gobo Wheel 1, Gobo Wheel 2, Iris, PAN, PAN FINE, Prism, Rotation Fine Gobo Wheel, Rotation Gobo Wheel, Rotation Prism, Set Dimmer Curve, strobe, TILT, TILT FINE, Zoom, Zoom Fine
PAN movement 540
TILT movement 270
High Speed Strobe > 20 Hz
Standalone modes Auto Mode, Settings, Static
Controls Enter, Mode, Value Down, Value Up
Indicators Graphic Display
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz, Neutrik True 1 IN / OUT
Power consumption 500 W
Housing material ABS plastic, Metal
Cabinet colour Black
Protection class IP IP20
Cooling Heat-pipe cooling system with temperature controlled fans
Illuminance 14000 lx @ 5 m
Luminous flux 9000 lm
Maximum Ambient Temperature -15 – 45 °C
Width 380 x 710 x 250 mm
Weight 28.95 kg
