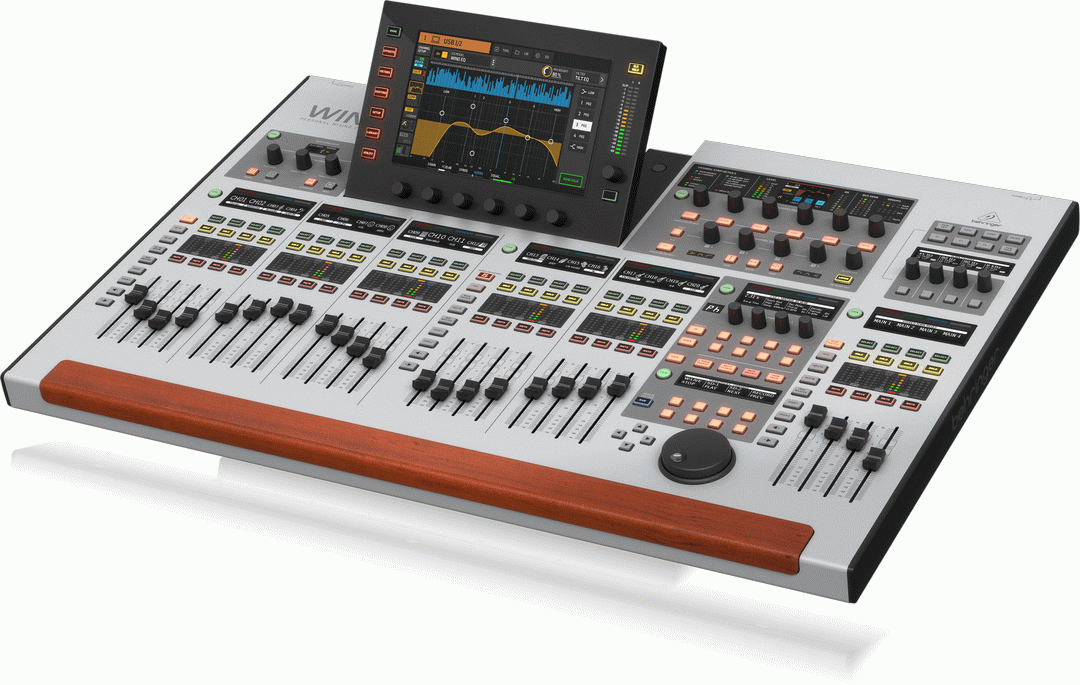

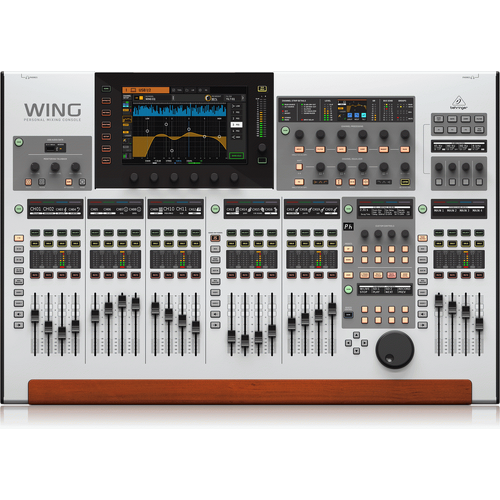

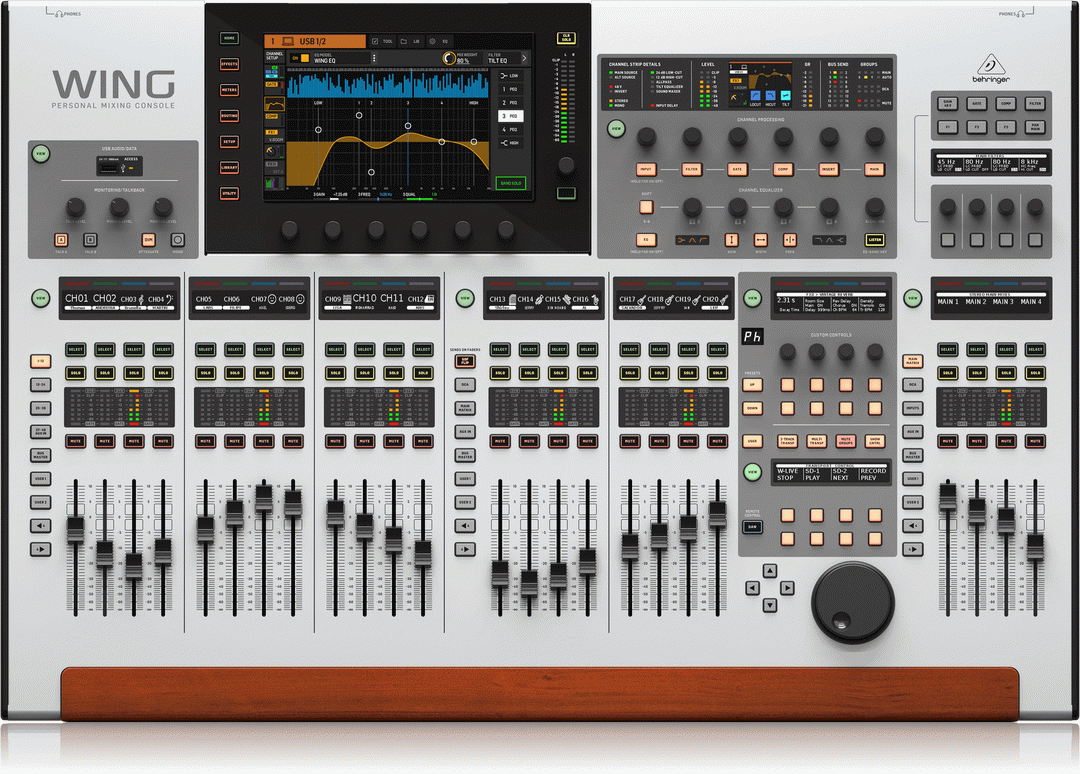

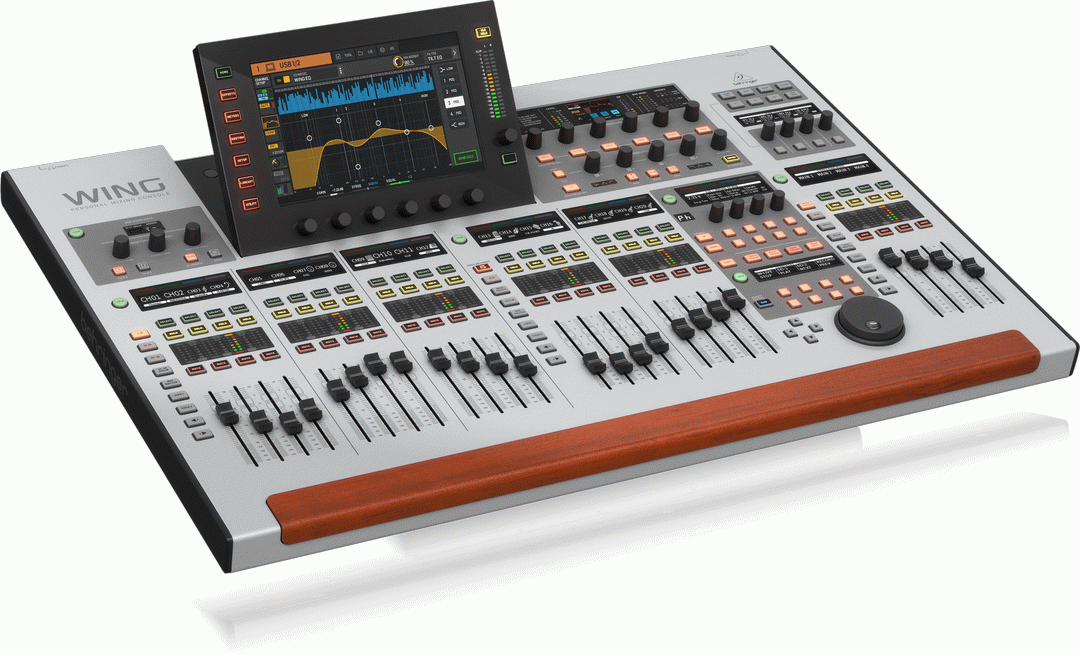

BEHRINGER WING DIGITAL MIXING CONSOLE

Features

8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard, 24 motorized 100 mm faders in 3 separate, fully configurable sections.

"Plug and play" remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency.

Large main display with capacitive touch screen and adjustable display swivel.

Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties.

Optional module for 64x64 channels of audio over,, Ethernet – supporting WAVES SoundGrid Technology* or Dante/AES67 Technology*.

48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI* and Mackie Control*

Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions.

Additional 4-channel control section with rotary controls, buttons and parameter display for permanent access to mains, matrices or "money-channels".

Premium FX rack with 8 true-stereo processors and world-class TC algorithms, Lexicon*, Quantec* and EMT* emulations.

Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc - also allows blending outboard effects to the mix.

5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels.

Custom Controls offering 16 latching or momentary buttons and 4 rotary controls, easily being configured for preferred functions.

4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, 2 Ethernet ports with integrated switch for networked remote control.

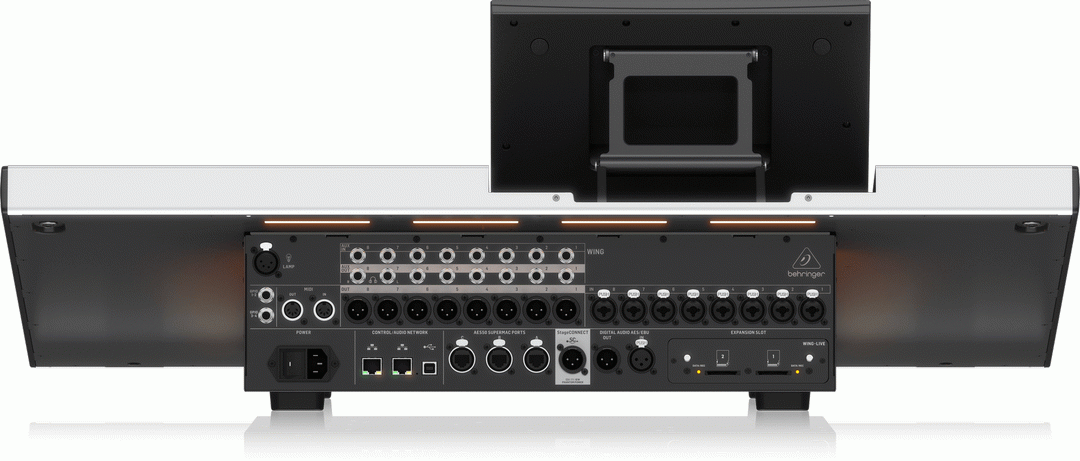

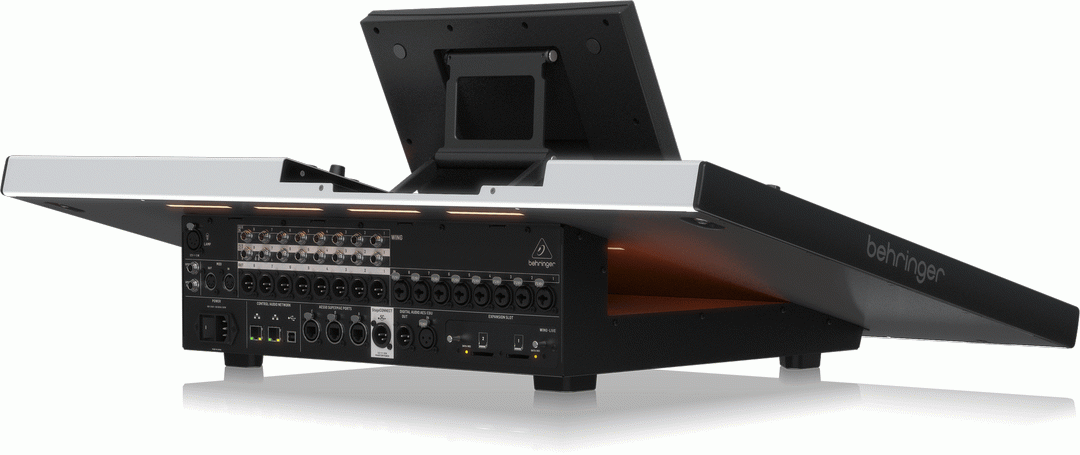

Built-in expansion port for optional audio interface cards or digital networking bridges, MADI* and ADAT/WC, StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in - and outputs on balanced XLR, 8x8 balanced TRS auxiliary line in - and outputs, 2 TRS phones connectors, MIDI I/O and 4 GPIO ports.

48-Channel, 28-Bus Full Stereo Digital Mixing Console with 24-Fader Control Surface and 10 Touch Screen.

• Plug and play remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
• Unique touch-sensitive channel editing section with 11.

• Height - 66.8cm
• Width - 97.6cm
• Length - 24cm
• Weight - WING_1kg
