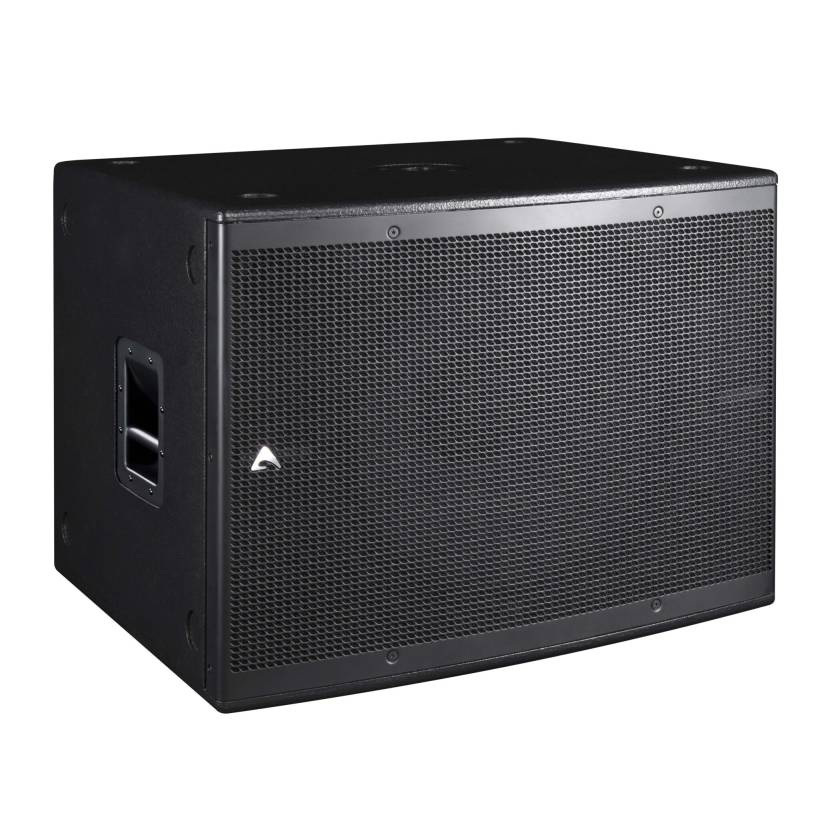

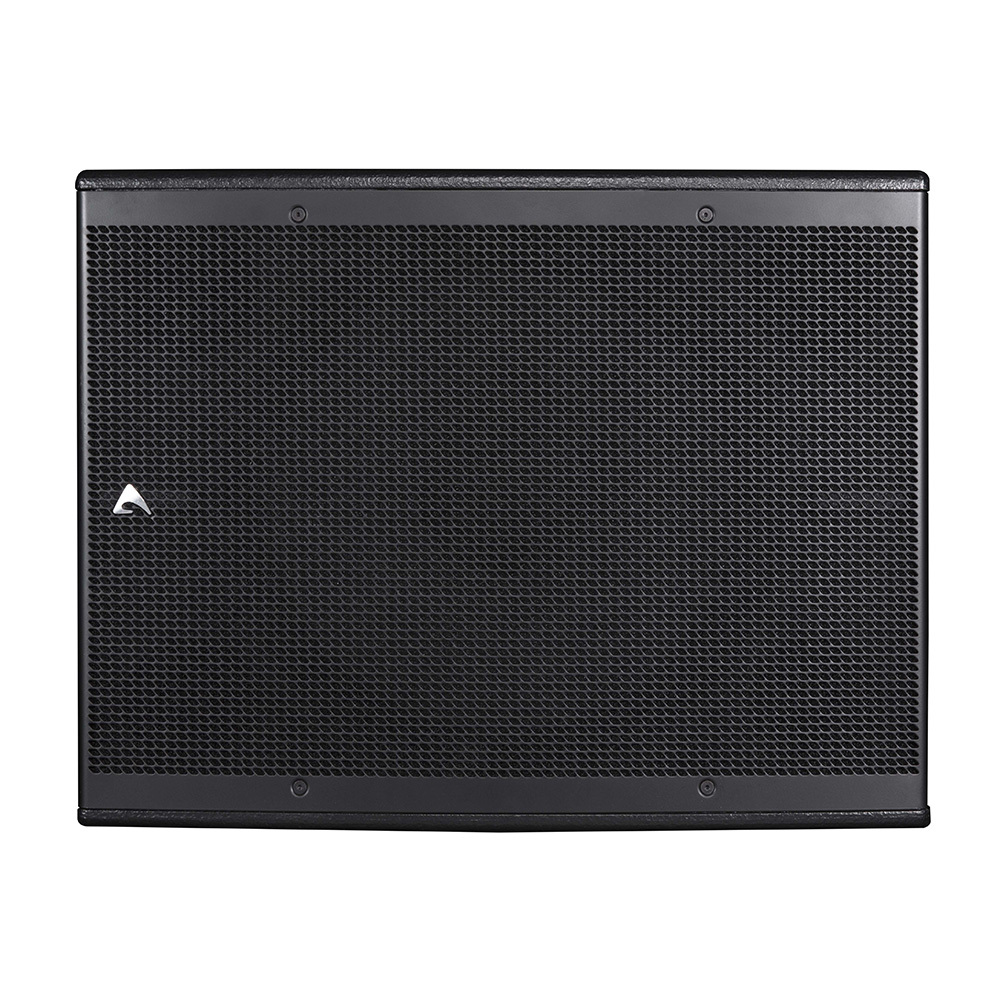

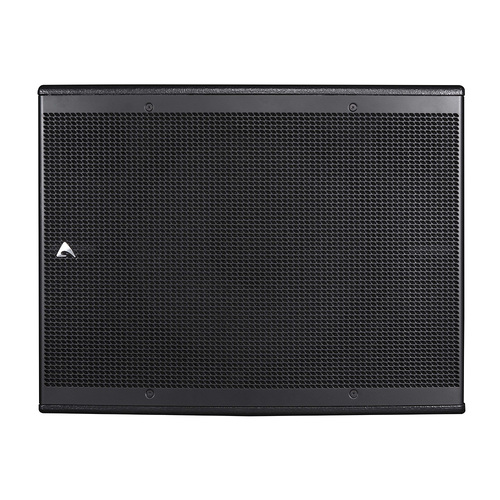

Axiom SW18A 18" Powered Subwoofer

• Compact powered subwoofer
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
• Digitally controlled Class D amplifier module with SMPS
• 18” woofer, 4” voice coil
• Water repellant cone
• Heavy duty wheels
• Pole mount socket

The SW18A is a compact and powerful subwoofer that provides extended low frequency response for specific models in the ED series of high performance point source loudspeakers.

The 18” low frequency driver is a high power transducer equipped with a moisture resistant glass fibre reinforced cone. The double centering spider ensures that the 4” voice coil always remains centered in the magnetic gap even under high excursion conditions.

The 15mm phenolic birch plywood cabinet is provided with a 35mm pole mount socket to allow two-way ED series loudspeakers to be mounted above on standard speaker poles. Recessed handles are provided for easy lifting and handing, and the included polyurethane wheels aid transportation, while stacking feet and matching recesses enable secure ground stacks.

SYSTEM PROCESSING

The system processing is based on the CORE DSP platform designed by the PROEL R&D Laboratories using one of the most advanced SHARC DSP for audio application. It features 40bit, 96kHz floating point resolution and top quality 24bit AD/DA converters for perfect signal integrity, dynamic range in excess of 110dB, and superior sonic performance. Thanks to its massive processing power, the CORE platform is capable of providing the most sophisticated algorithms for speaker processing, together with remote control and networking capability. The PRONET control software, working on a solid and reliable CANBUS based network protocol, provides an intuitive interface for the remote control of the whole system, with the possibility of EQing, delaying, managing the protection functions, and monitoring the status of the amplifier.

POWER AMPLIFIER

The SW18A is powered by a DA SERIES digital power module. DA SERIES is a new generation of CLASS D power amplifiers with digitally-controlled SMPS. The innovative technology used for these amplifiers (including also the use of a variable switching frequency) offers top of the range performance, such as superior sound definition at any audio frequency, very high dynamics also for low level signals and very low distortion even at the maximum power. The superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature a higher dynamics, very compact size and light weight, and
efficiency above 90%. The DA module employed for powering the SW18A delivers in an ultra-compact package power of 2000W to the LF driver. Such a large reserve of power means that the amplifier can handle very high voltage peaks, resulting in an impressive dynamic performance.

Technical Data
