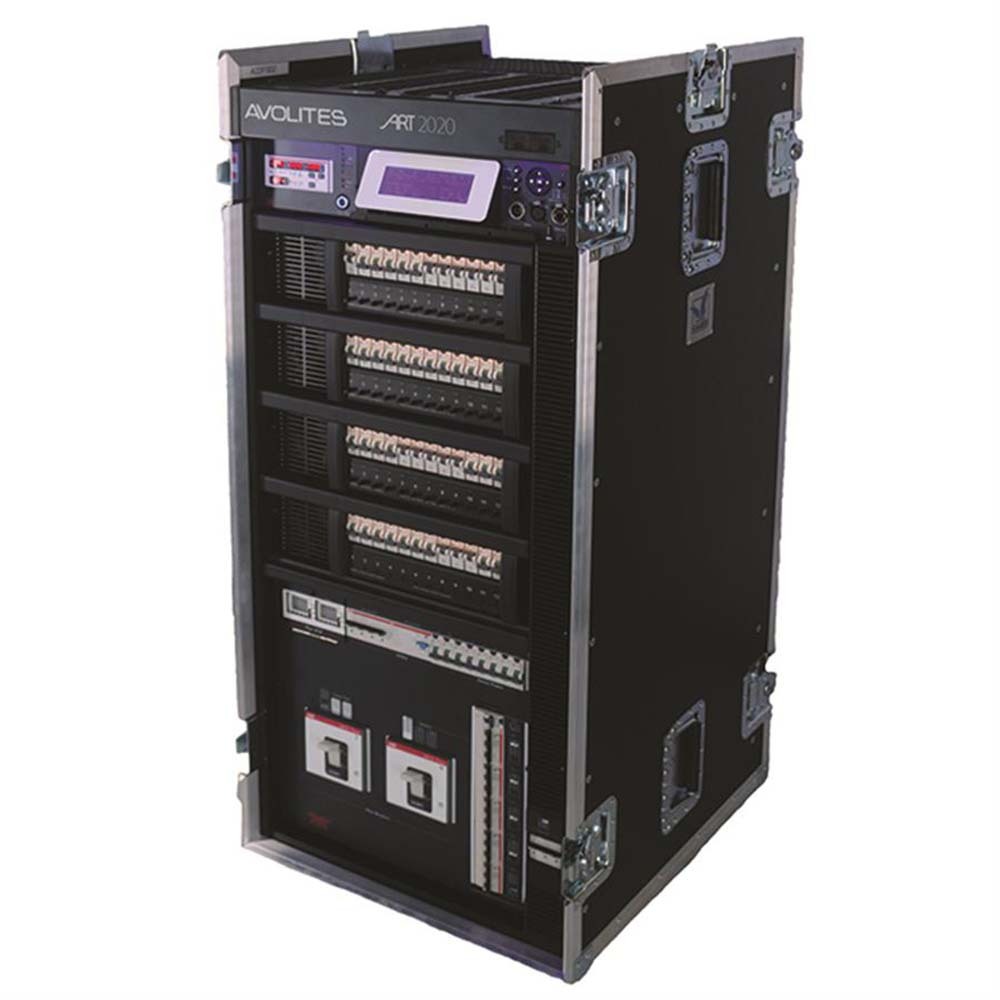

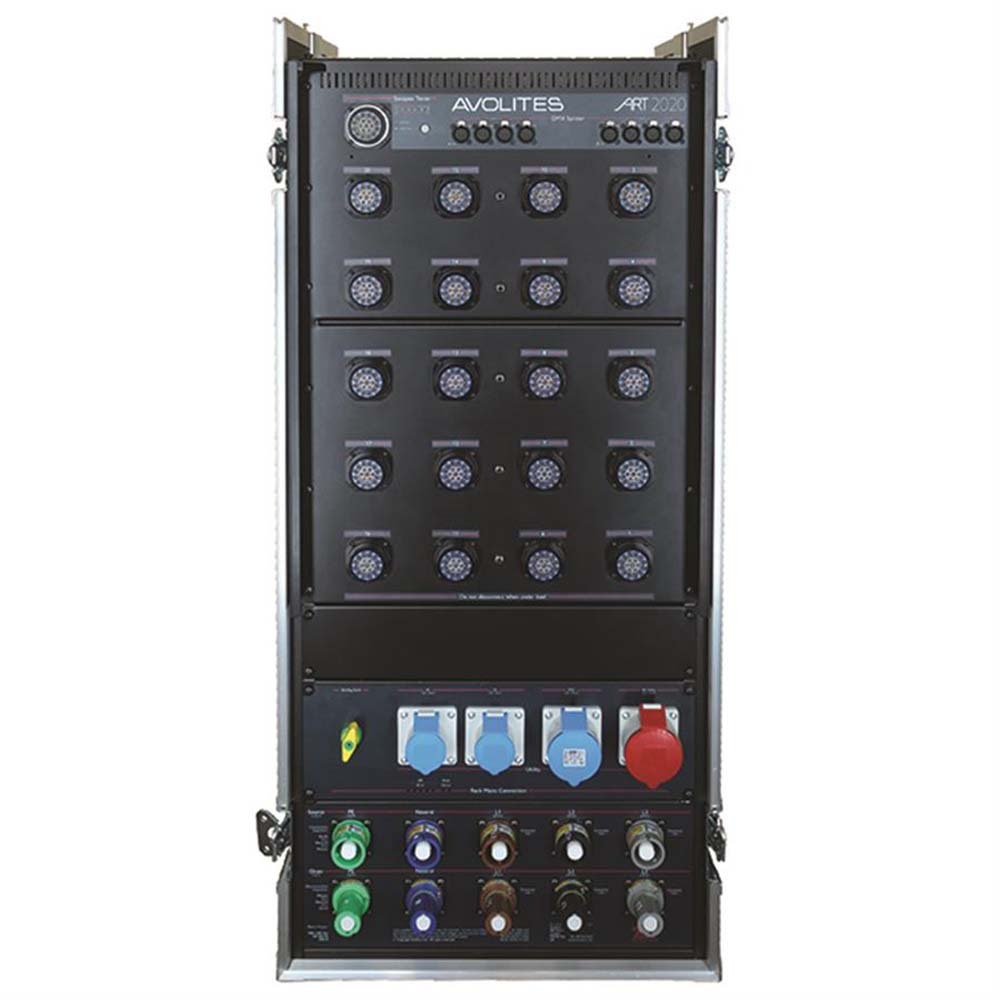

Avolites ART 2020 T4 48 x 16A

The ART2020 was designed with contributions from industry leading users and companies combined with 16 years of ART2000 and 40 years of Avolites dimmer knowledge to create a flexible and capable distribution and dimming system.

There is no need to have separate mains distribution or DMX splitters making set up times faster and lowering the number of individual components needed to put a show together.

The available modules are 12 x 16A RCBO dimmer, 12 x 16A RCBO distribution circuits or 12 x 16A RCBO contactor module to provide switchable mains to fixtures. The modules are freely interchangeable by the user.

• 48 dimmer or distribution circuits
• 6 additional Direct out circuits
• All final circuits are protected with a European made RCBO (30mA/20mS)
• Main System input breaker with adjustable trip current of 125, 160, 250 and 320A
• Separate Loop Out Breaker adjustable trip current of 125, 160, 250 and 320A
• Loop Out and System input RCB protection with Current and Trip Delay adjustment
• Overvoltage protection during start-up
• Clear indication of Phase, neutral and differential currents  and Voltages
• Integral multi pin connector load tester
• Ergonomic layout and User Interface
• DMX-512, Art-net and sACN control input
• Build in two Universe Art-net and sACN Node with 4 outlets per universe
• USB Phone Charging point
• RGB Rack lighting, Backlit switches and illuminated Breakers
• Dedicated FOH 32A RCBO and Connector
• Fast test function with local faders
• Designed to meet new standards in temporary electrical systems
