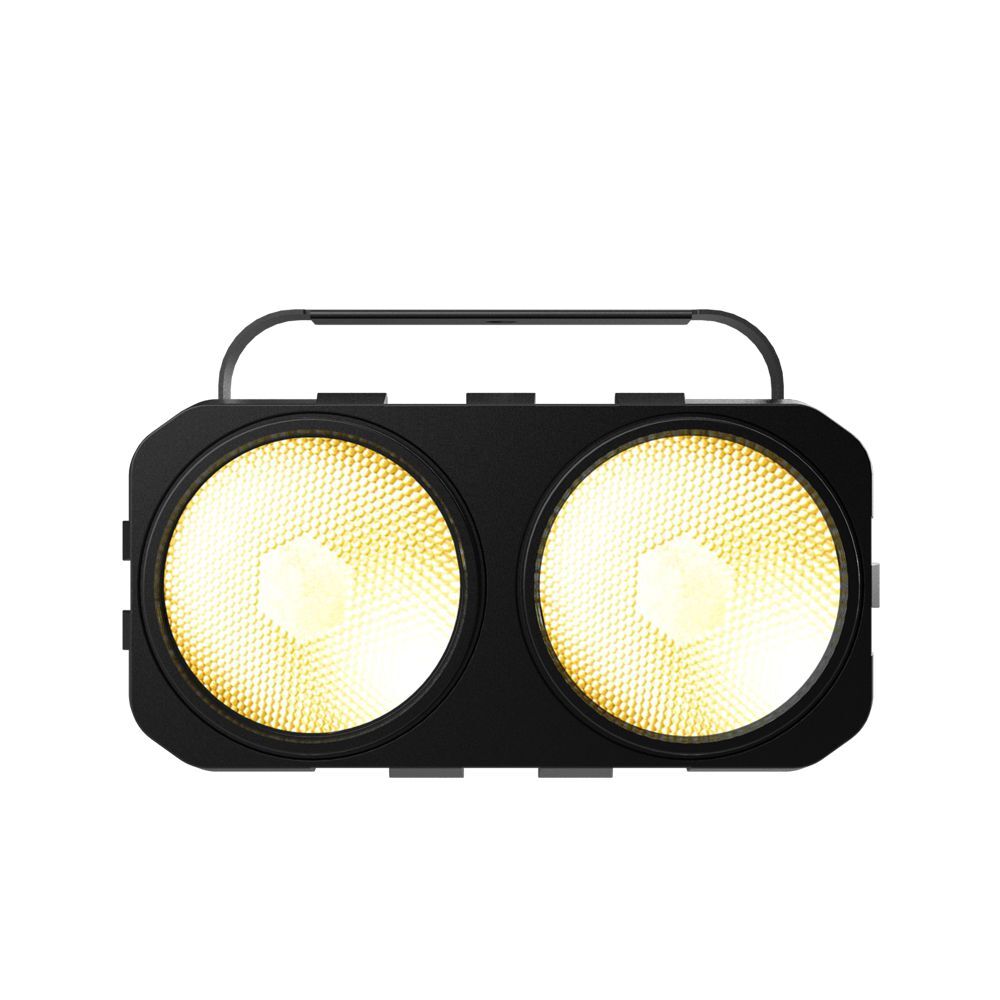

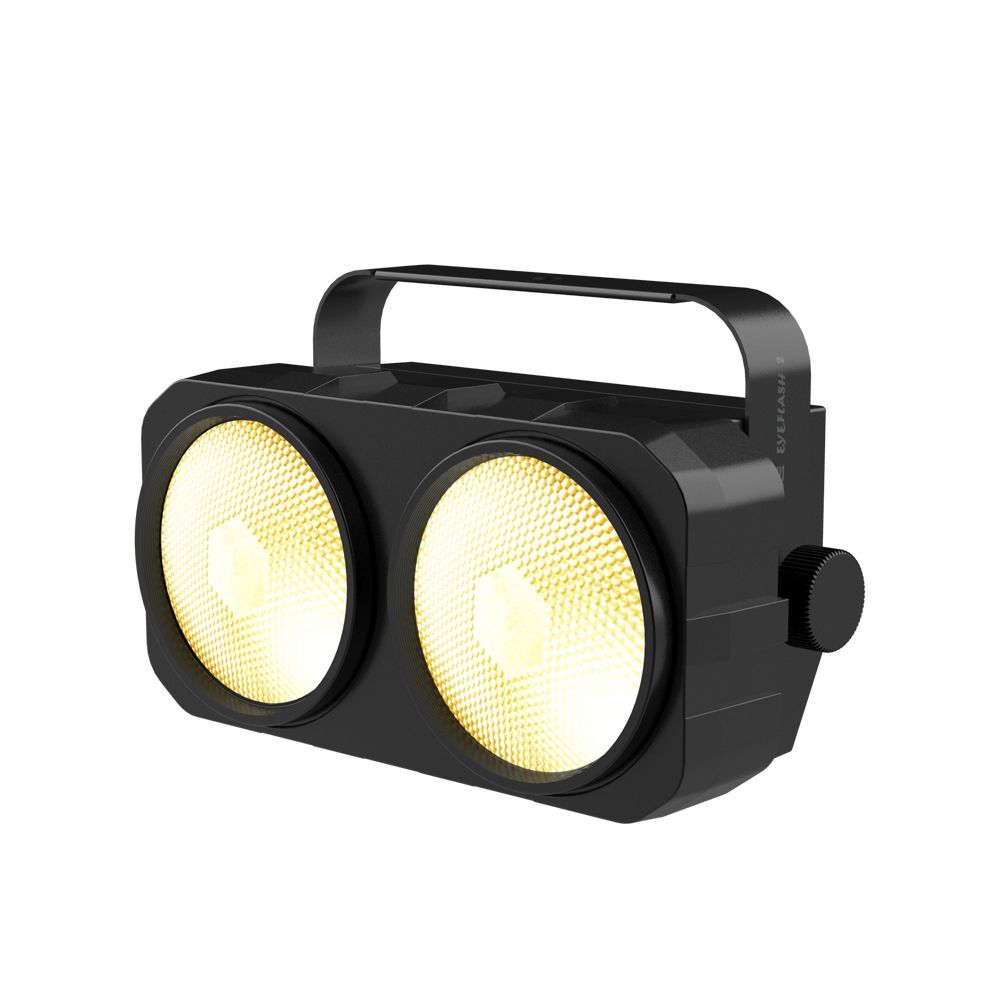

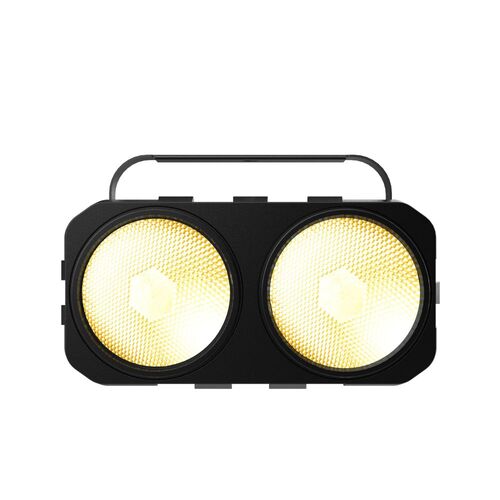

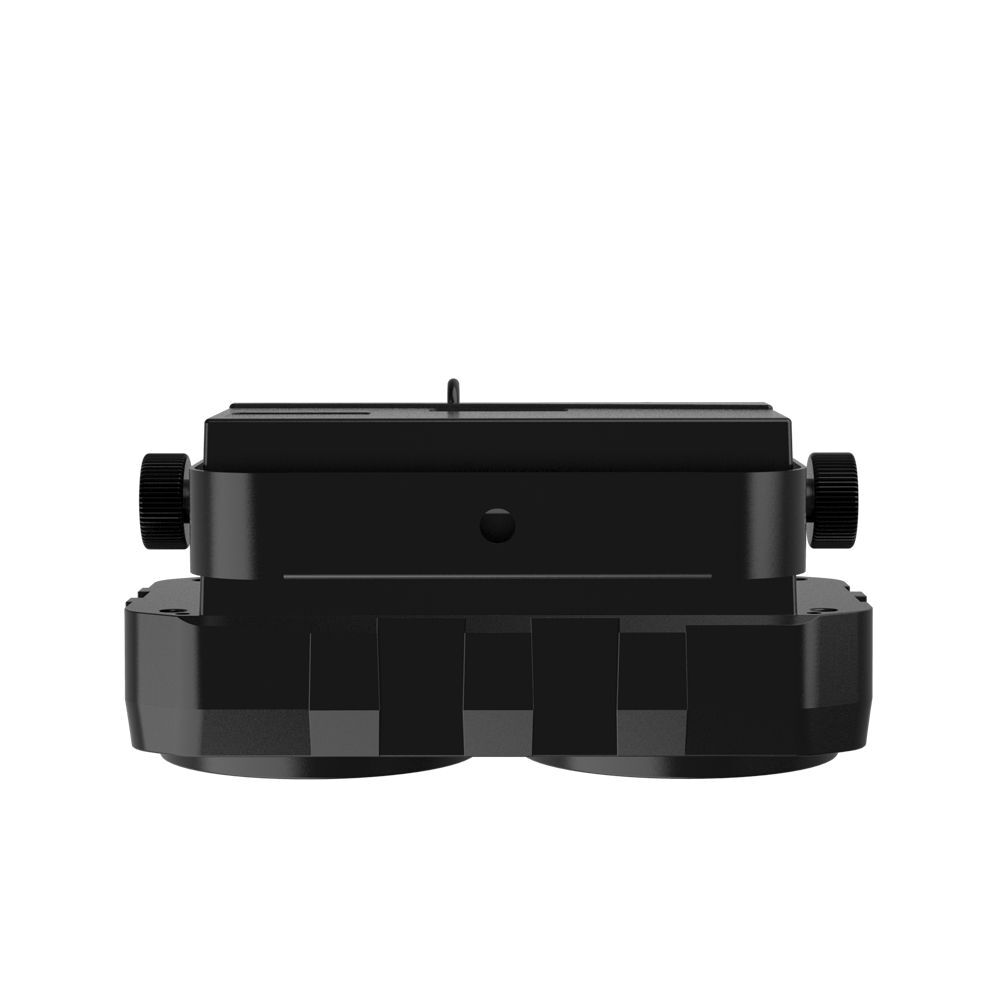

ACME EYEFLASH BLINDER WW

The EYEFLASH 2 WW features 2 pcs long-life 100W Warm White 3,000K COB LED and each COB module can be controlled individually. Equipped with a 39.5° beam angle and a 96° field angle, easily meet your demand for front light or blinder. This compact body is no more than 3 kgs but includes a unique tungsten effect, variable and selectable dimming curves, strobe effects, flicker-free operation for TV and Film, and OLED menu display with 4 button control panel.

Fast and easy installation can often save a lot of time and nerves. Especially when fixtures are very light. We even designed quick-positioning joints onto the shell and you can combine several units by locking the connecting board.



Features

• Light Source : 2 x 100W WW COB
• 2 x leds can be controlled individually
• Beam Angle: 39.5°
• Field Angle：96°
• Outstanding strobe effect with variable speed
• Unique tungsten effect
• High resolution dimmer 0–100%

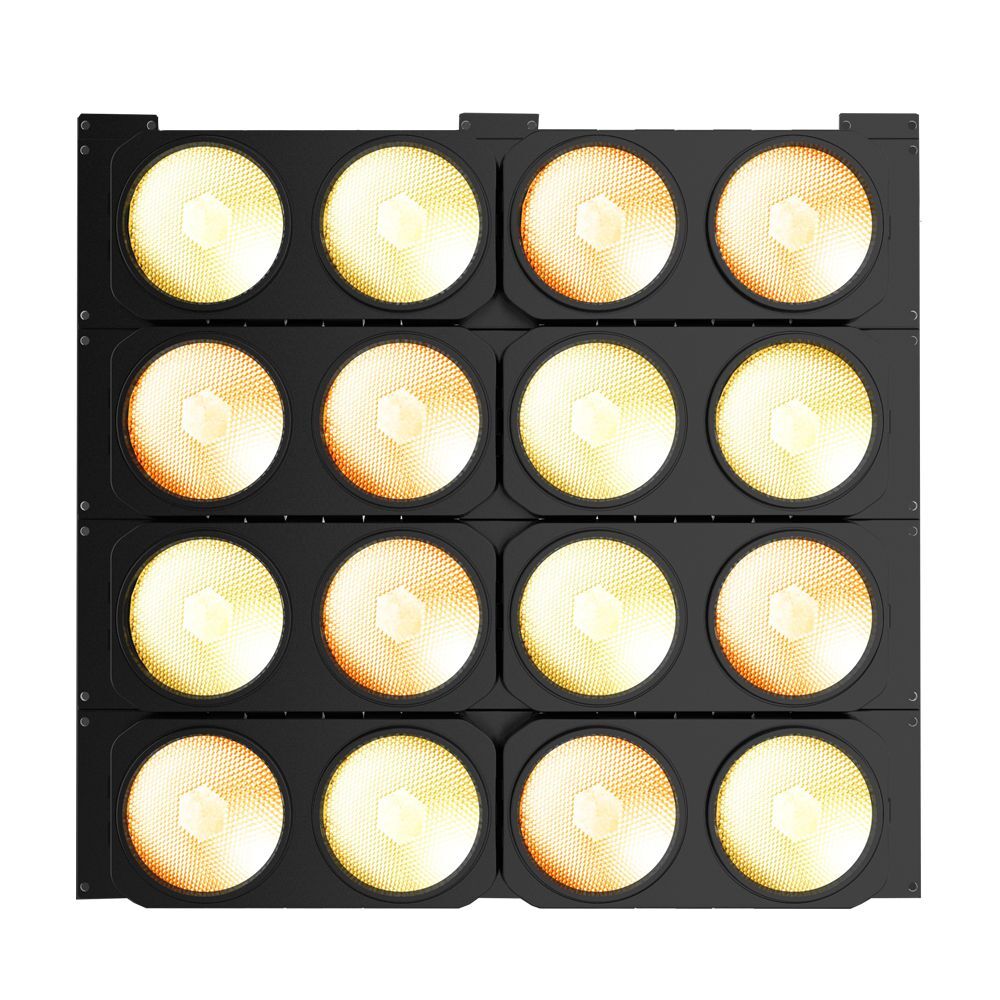

• Multiple units can be split-jointed horizontally with connecting board
• Flicker free management.

Model

• BLINDER 2 WW



Light source

• Light Source: 2 x 100W WW COB
• LED life expectancy: 20000 hours



Optical System & Effects

• Beam Angle: 39.5°
• Field Angle：96°
• 2 x leds can be controlled individually
• Unique tungsten effect
• Outstanding strobe effect with variable speed
• High resolution dimmer 0–100%



Control and Program

• 4-buttons touch panel
• Display: OLED display
• Control Mode: DMX512, RDM
• DMX Protocol modes: 1,2,4,6
• Upgrade the firmware via DMX link



Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 200 W

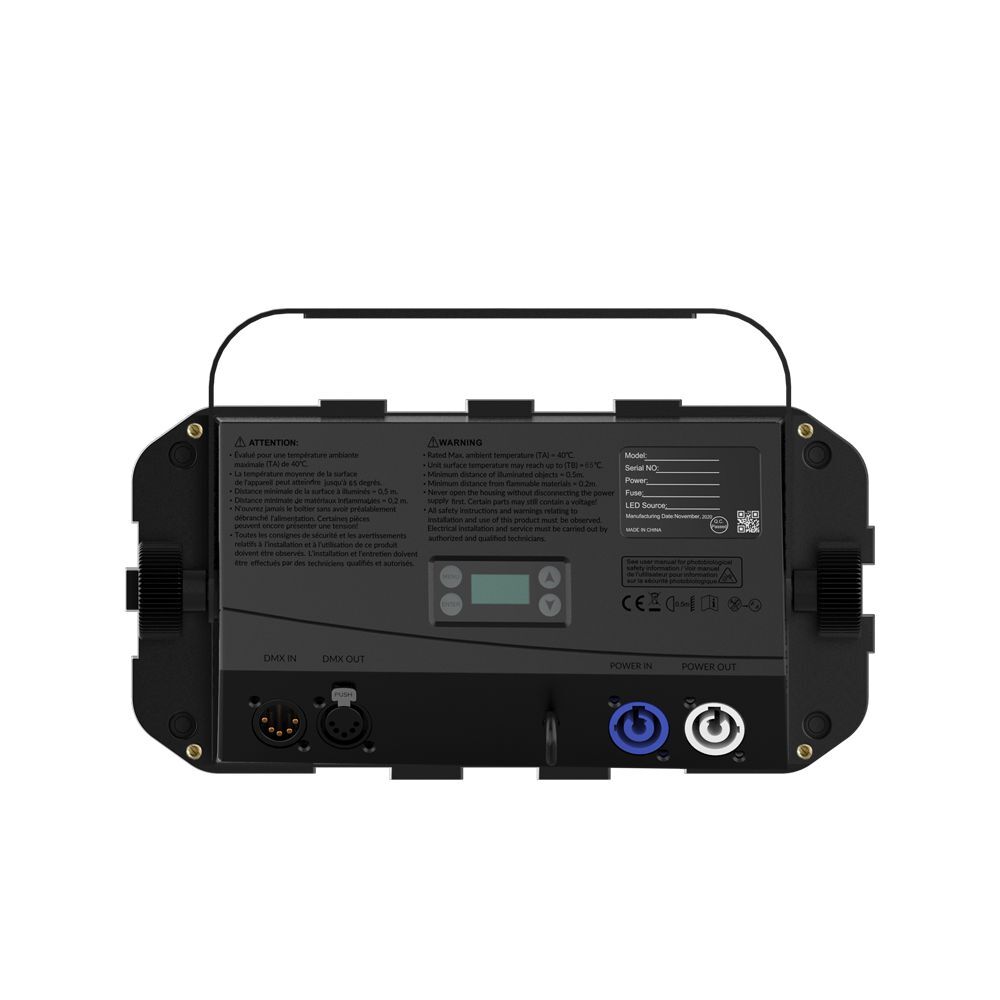

• Power In/Out: Power Connector in/out
• Data in/out: 3-pin or 5-pin XLR



Fixture Specification

• Fixture dimension:
  • Height: 192 mm (7.6")
  • Width: 155 mm (6.1")
  • Depth:305 mm (12")
  • Weight of fixture: 2.5 kg (5.5 lbs)
• Carton dimension:
  • Height: 215 mm (8.5")
  • Width: 250 mm (9.8")
  • Depth: 395 mm (15.6")
  • Weight of fixture: 3.2 kg (7.1lbs) (one pack per carton)



Work environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: 0°C
• Maximum surface temperature: 65°C



Approvals

• CE compliant



Installation

• Available in horizontally or vertically mounting way
• Multiple units can be split-jointed horizontally with connecting board
• Multi projection angle operation
• Bracket with one locking point for clamp's installaiton

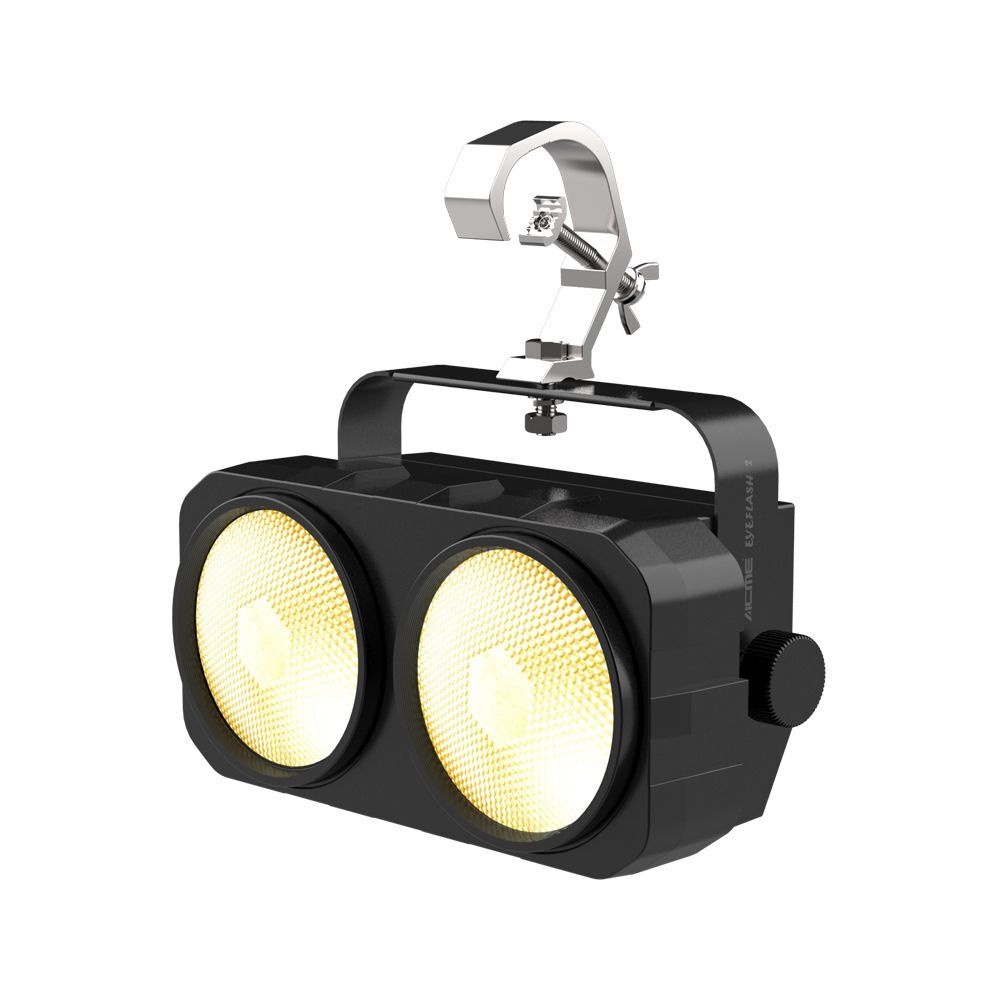

• 1 x clamp for 50 millimeter truss
• Safety Rope Hole



Included items

• Digital User Manual
• power cable
• Carton： 3025169049



Optional Accessories (with item code)

• Clamp：2060001635 (C-100A)
• connecting board (optional):

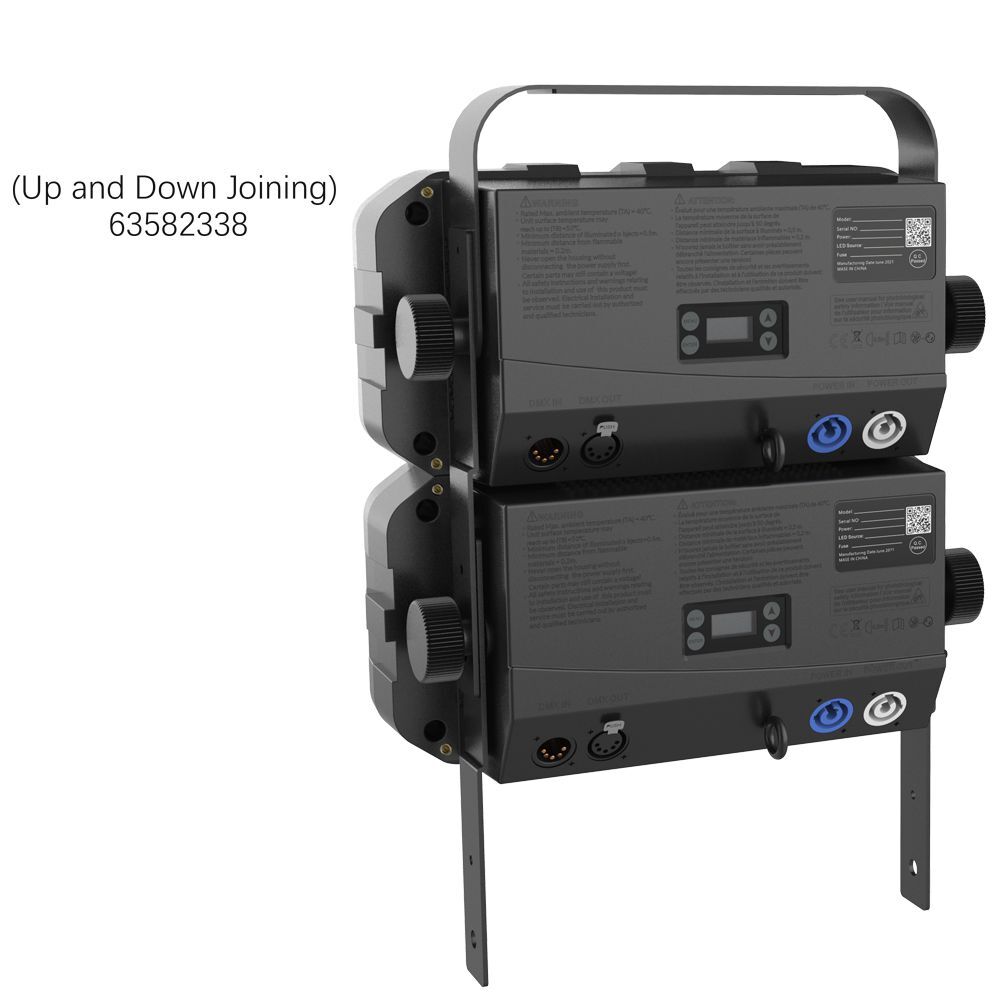

  • 63582338 (Up and Down Joining)

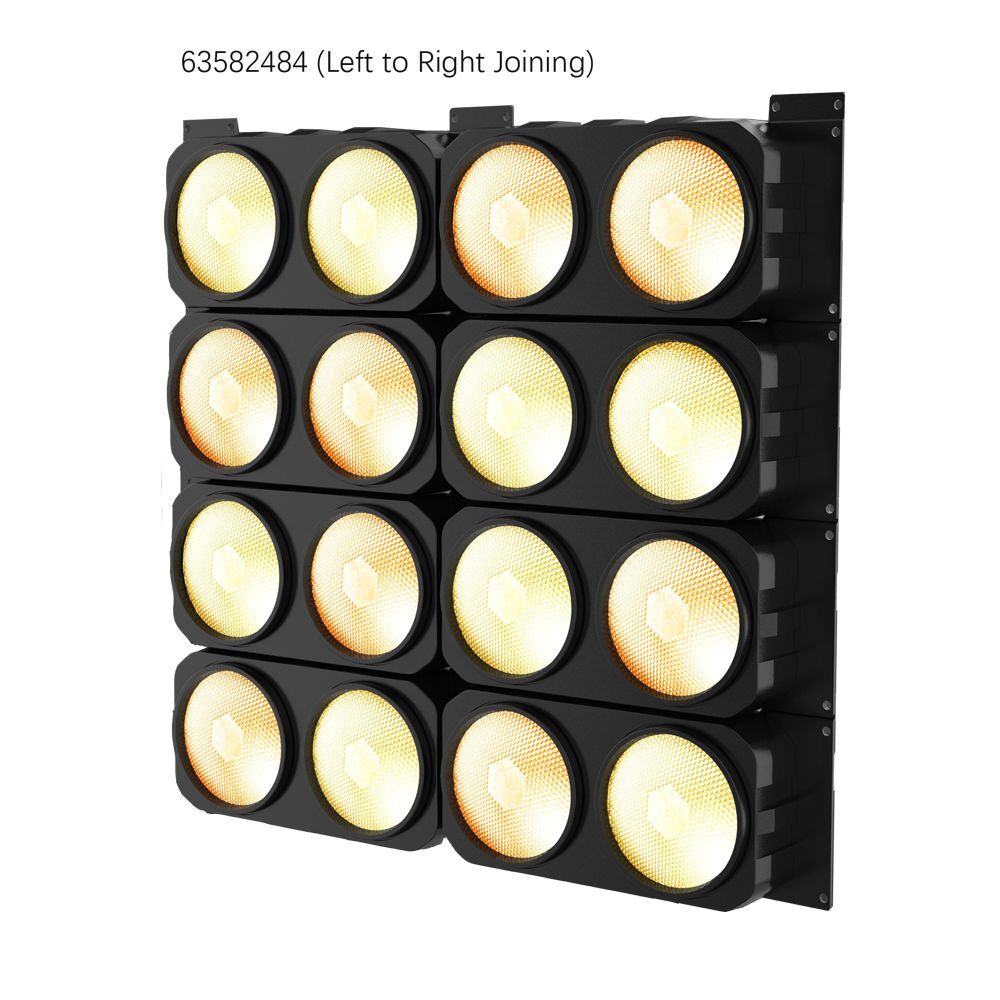

  • 63582484 (Left to Right Joining)
• Signal Line：3-pin or 5-pin signal line
