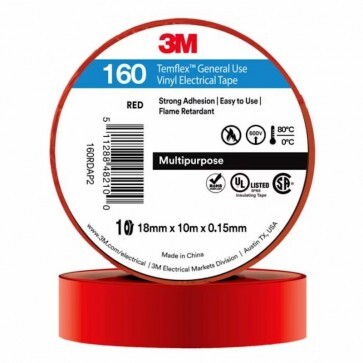

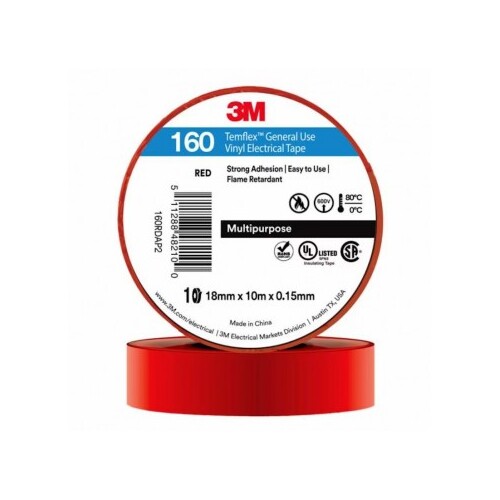

3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
FEATURES & BENEFITS
- General purpose vinyl tape
|
- Great for less demanding indoor applications
|
|
|
- Suitable for ambient indoor uses
|
- Basic electrical and hardware application: phase identification; colour coding; harnessing
|
SPECIFICATIONS
- Temperature Resistance (UL510): 0°C - 80°C
|
- Temperature Resistance (CSA C22.2 No.197): -10°C - 80°C
|
|
|
|
|
|
- Adhesion to Steel (N/10mm): 2.4
|
- Adhesion to Backing (N/10mm): 2.4
|
- Dielectric Strength (kV/mil): 1.2
|
CERTIFICATIONS
- UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cab
| Part No. |
3M160-RD |
| Brand |
3M |
| Unit Of Measure |
Roll |
| Compendium Page # |
425 (click to view) |
| Colour |
Red |
| Dimensions |
0.15mm x 18mm x 20m |
les in accordance with NFPA 70, National Electrical Code
|
- CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
|
